Overview: MCP server authentication

Model Context Protocol (MCP) is an open standard that gives AI apps a consistent, secure way to connect to external tools and data sources. A helpful way to picture it is USB‑C for AI integrations: instead of building a custom connector for every service, MCP provides one interface that works across different models, platforms, and backends. That makes it much easier to build agent-style apps that can actually do work, but it also makes authorization a bigger deal, because once an agent can act on your behalf, you need clear, tight control over what it can access and what actions it’s allowed to take.

At its core, MCP follows a client-server architecture where a host application can connect to multiple servers:

• MCP hosts: AI applications like Claude Desktop, IDEs, or custom AI tools that need to access external resources
• MCP clients: Protocol clients that maintain connections between hosts and servers
• MCP servers: Lightweight programs that expose specific capabilities (tools, data, or services) through the standardized protocol
• Data sources: Local files, databases, APIs, and services that MCP servers can access

This architecture enables a ecosystem where AI models can seamlessly integrate with hundreds of different services without requiring custom code for each integration.

The path to secure MCP: OAuth 2.1 integration

Recognizing these challenges, the MCP specification evolved to incorporate robust authorization mechanisms. The Model Context Protocol provides authorization capabilities at the transport level, enabling MCP clients to make requests to restricted MCP servers on behalf of resource owners.

The MCP specification chose OAuth 2.1 as its authorization framework for several compelling reasons

Industry standard	OAuth 2.1 is a well-established, widely-adopted standard for delegated authorization, with extensive tooling and ecosystem support.
Security best practices	OAuth 2.1 incorporates lessons learned from OAuth 2.0, removing deprecated flows and enforcing security measures like PKCE (Proof Key for Code Exchange).
Flexibility	Supports multiple grant types suitable for different MCP use cases: Authorization code: When AI agents act on behalf of human users Client credentials: For machine-to-machine integrations
Ecosystem compatibility	Works with existing identity providers and authorization servers, making it easier for enterprises to integrate MCP into their existing security infrastructure.

This authorization mechanism is based on established specifications listed below, but implements a selected subset of their features to ensure security and interoperability while maintaining simplicity:

• OAuth 2.1: Core authorization framework with enhanced security
• OAuth 2.0 Authorization Server Metadata (RFC8414): Standardized server discovery
• OAuth 2.0 Dynamic Client Registration Protocol (RFC7591): Automatic client registration
• OAuth 2.0 Protected Resource Metadata (RFC9728): Resource server discovery
• Client ID Metadata Document (CIMD): Lets authorization servers fetch client metadata directly from a client-hosted document for authorization

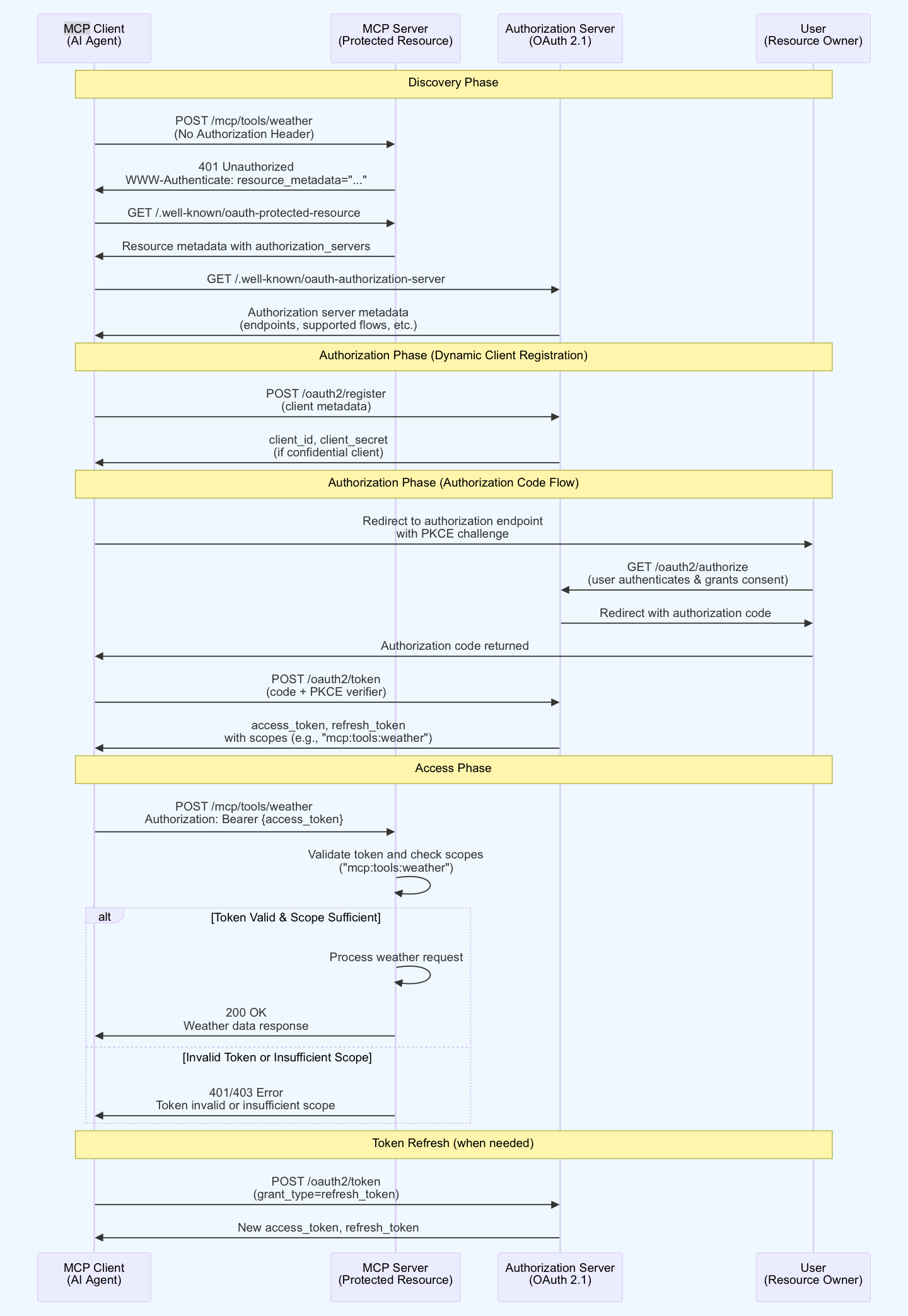

The authorization flow in practice

Now let’s zoom in and see how the MCP OAuth 2.1 flow unfolds step-by-step:

Discovery phase

1. MCP client encounters a protected MCP server
2. Server responds with 401 Unauthorized and WWW-Authenticate header pointing to Scalekit Auth Server
3. Client discovers Scalekit Auth Server capabilities through metadata endpoints

Authorization phase

4. Client registers with Scalekit Auth Server (if using DCR)
5. Scalekit Auth Server issues client credentials (if using DCR)
6. Client initiates appropriate OAuth flow
7. User grants consent (for Authorization Code flow)
8. Scalekit Auth Server issues access token with appropriate scopes

Client registration

Dynamic client registration

MCP clients and authorization servers SHOULD support the OAuth 2.1 Dynamic Client Registration Protocol to allow MCP clients to obtain OAuth client IDs without user interaction. This enables seamless onboarding of new AI agents without manual configuration.

Client ID Metadata Document (CIMD)

MCP clients SHOULD support the Client ID Metadata Document (CIMD) specification, which allows clients to publish their OAuth client metadata at a well-known URL under their control. This enables authorization servers to automatically retrieve and validate client metadata without requiring an explicit dynamic registration request, simplifying onboarding for new AI agents while maintaining secure, decentralized client configuration.

Access phase

9. Client includes access token in requests to MCP server
10. MCP server validates token and enforces scope-based permissions
11. Server processes request and returns response
12. All interactions are logged for audit and compliance

Key security enhancements in MCP OAuth 2.1

MCP’s OAuth 2.1 profile reduces a few common risks in the authorization code flow. The key enhancements are:

• Mandatory PKCE: Clients must use PKCE to help prevent authorization code interception.
• Strict redirect URI validation: Servers must only allow pre-registered redirect URIs and enforce an exact match to reduce redirect attacks.
• Short-lived tokens: Authorization servers should issue short-lived access tokens to limit impact if a token leaks.
• Granular scopes: Use narrow scopes (for example, todo:read, todo:write) so apps request only what they need and users can understand what they’re granting.
