Figma

What you can do

Connect this agent connector to let your agent:

• Delete comment reaction, dev resource, file comment — Removes the authenticated user’s emoji reaction from a comment in a Figma file
• List file components, file component sets, file styles — Returns a list of all published components in a Figma file, including their keys, names, descriptions, and thumbnails
• Create file comment, webhook, comment reaction — Posts a new comment on a Figma file
• Get webhook, file variables local, file image fills — Returns details of a specific Figma webhook by its ID, including event type, endpoint, and status
• Update file variables, webhook, dev resource — Creates, updates, or deletes variables and variable collections in a Figma file
• Render file images — Renders nodes from a Figma file as images (PNG, JPG, SVG, or PDF) and returns URLs to download them

Authentication

This connector uses OAuth 2.0. Scalekit acts as the OAuth client: it redirects your user to Figma, obtains an access token, and automatically refreshes it before it expires. Your agent code never handles tokens directly — you only pass a connectionName and a user identifier.

You supply your Figma Connected App credentials (Client ID + Secret) once per environment in the Scalekit dashboard.

Set up the connector

Register your Figma app credentials with Scalekit so it can manage the OAuth 2.0 authentication flow and token lifecycle on your behalf. You’ll need a Client ID and Client Secret from the Figma Developers portal.

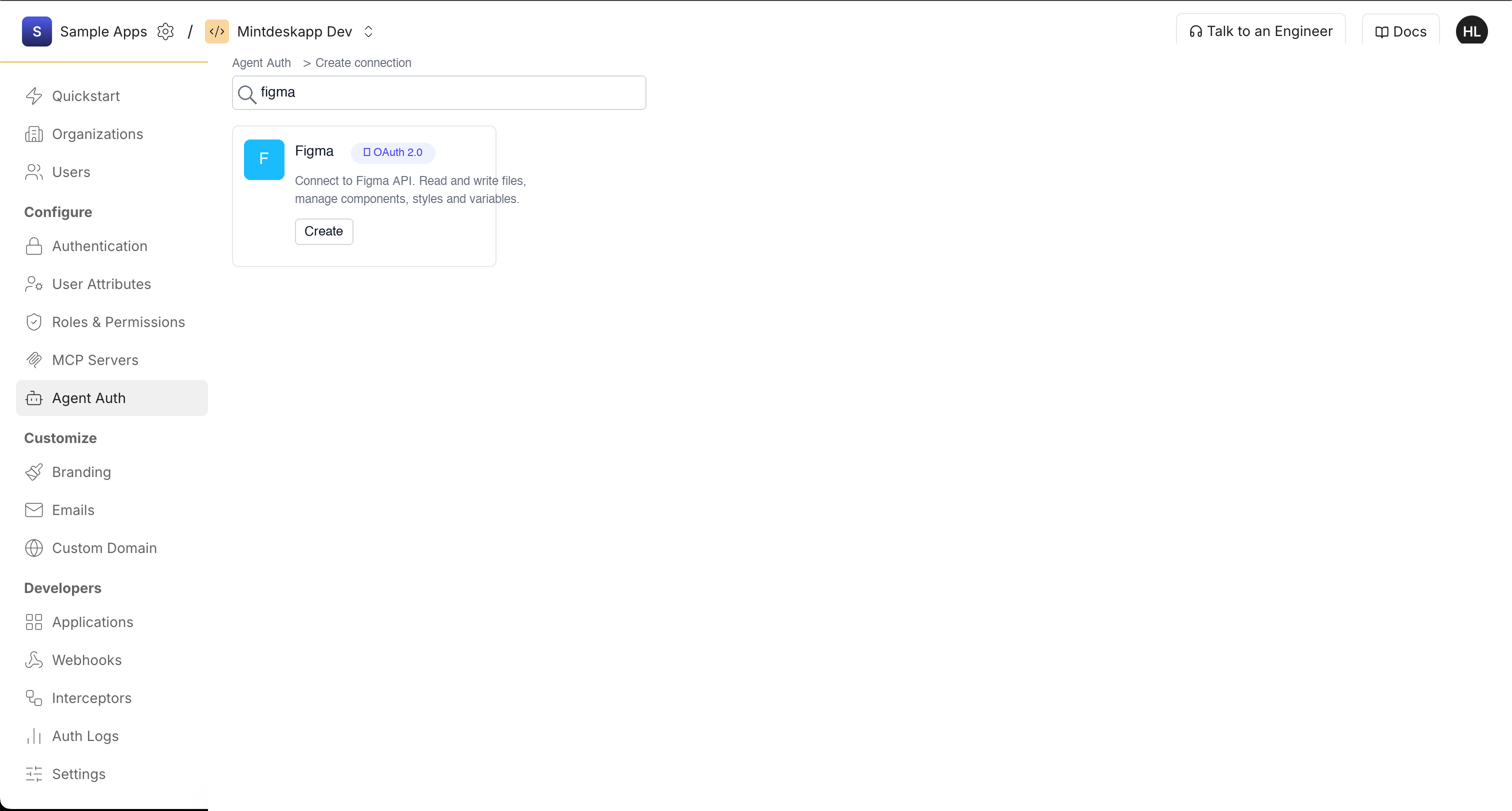

1. Create a Figma connection in Scalekit

   • In Scalekit dashboard, go to Agent Auth → Create Connection. Search for Figma and click Create.

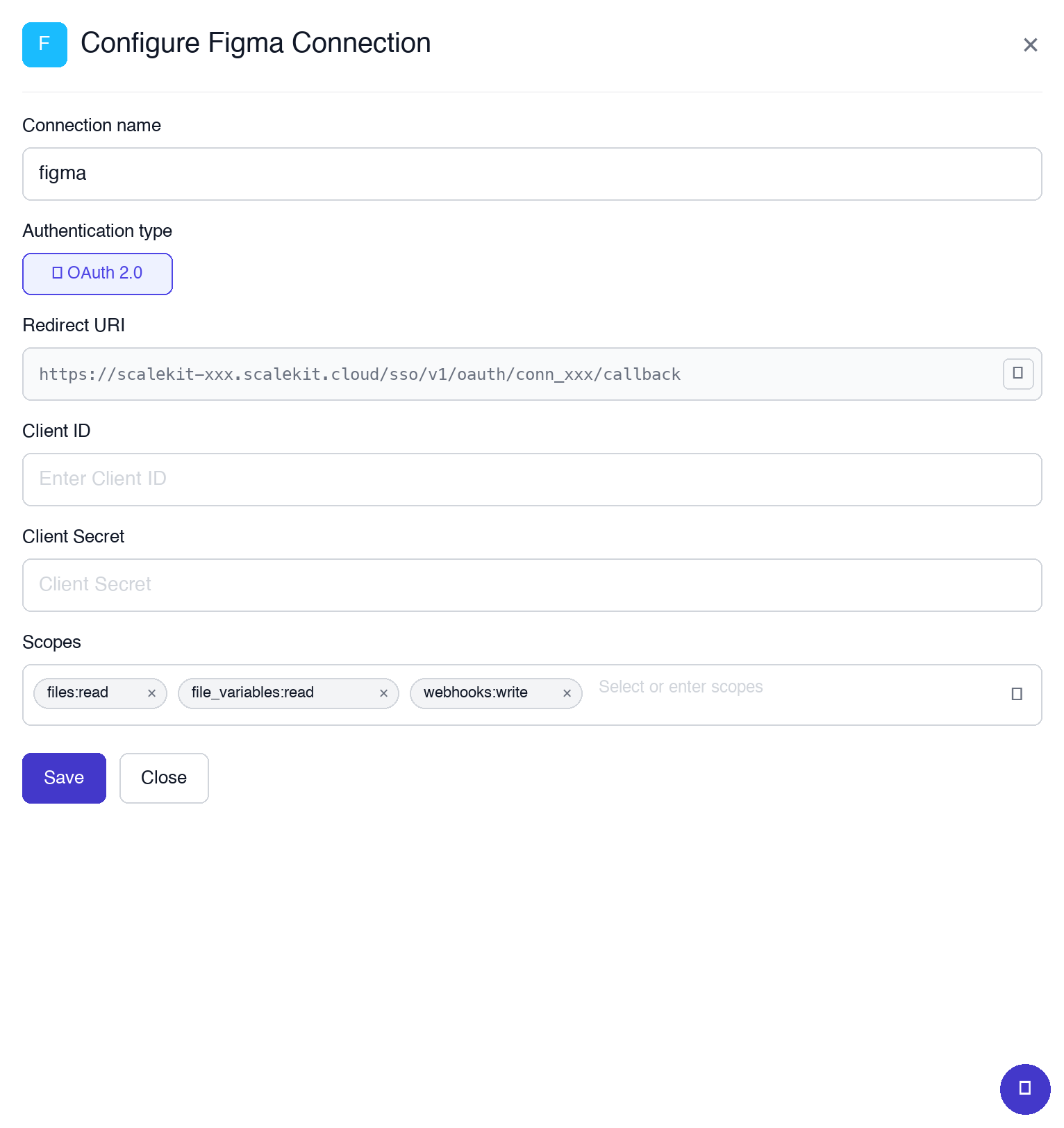

   • In the Configure Figma Connection panel, copy the Redirect URI. It looks like https://<SCALEKIT_ENVIRONMENT_URL>/sso/v1/oauth/<CONNECTION_ID>/callback. You’ll paste this into Figma in the next step.

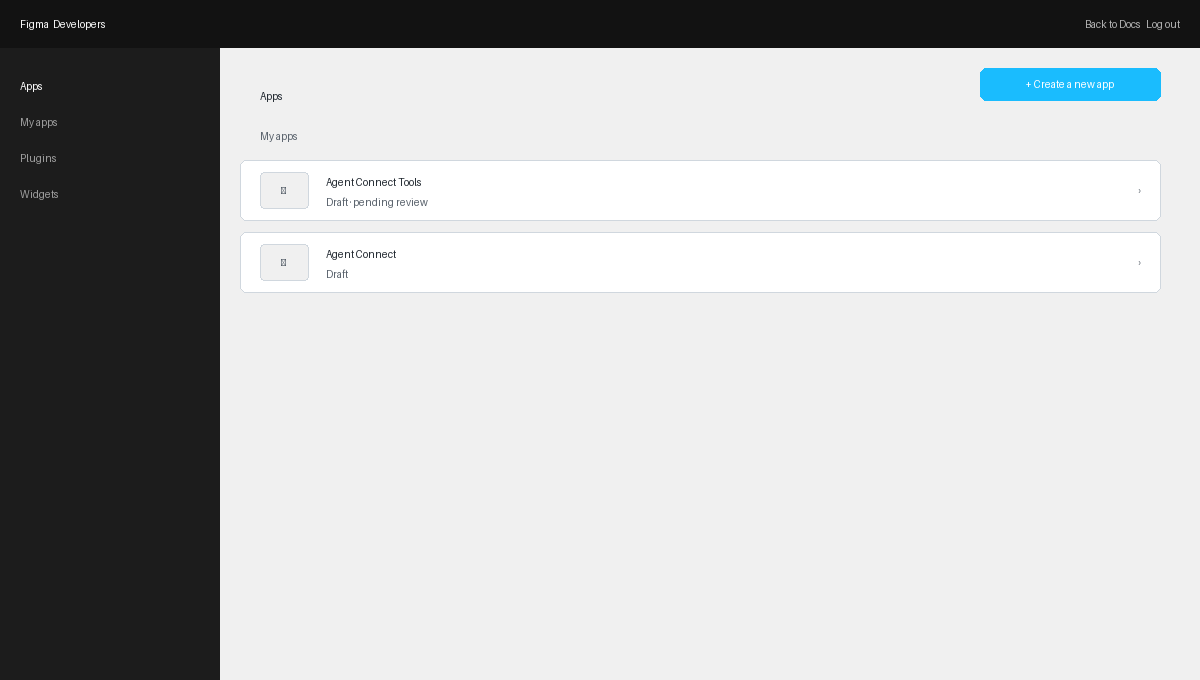

2. Create an app in the Figma Developers portal

   • Go to the Figma Developers portal and sign in. Click + Create a new app.



   • Fill in your app name and description, then click Save.

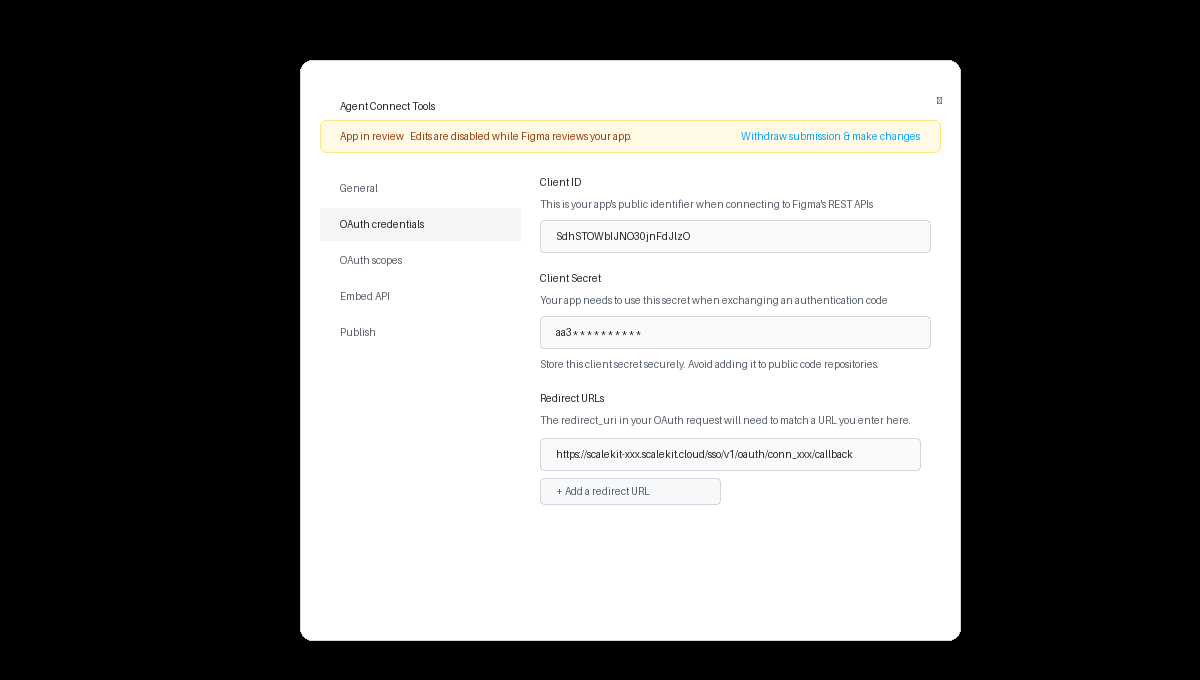

3. Add the redirect URI and copy credentials

   • Open your app and click the OAuth credentials tab.

   • Under Redirect URLs, click Add a redirect URL and paste the Redirect URI you copied from Scalekit.

   • Copy the Client ID from the same tab.

   • Copy the Client Secret. Store it securely — never commit it to source control.



   Client secret is shown once

   The Client Secret is masked after the initial creation. If you lose it, you must generate a new one in the Figma app settings.

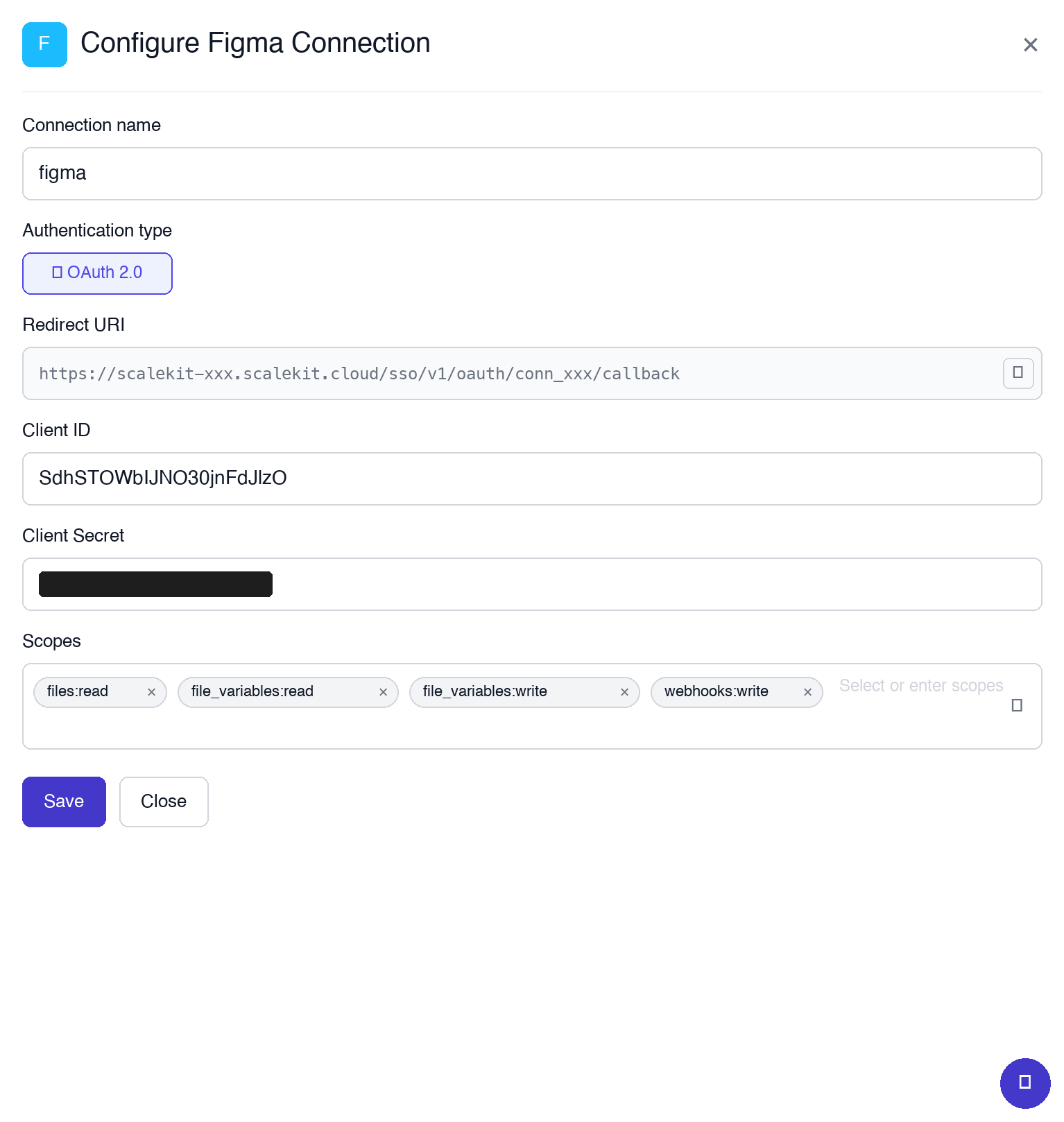

4. Add credentials in Scalekit

   • In Scalekit dashboard, go to Agent Auth → Connections and open the Figma connection you created.

   • Enter your credentials:

     • Client ID — from the Figma OAuth credentials tab
     • Client Secret — copied in the previous step
     • Scopes — select the permissions your app needs:
       • files:read — read files, nodes, images, components, and styles
       • file_variables:read — read local and published variables
       • file_variables:write — create, update, and delete variables
       • webhooks:write — create, update, and delete team webhooks



   • Click Save.

Code examples

Connect a user’s Figma account and make API calls on their behalf — Scalekit handles OAuth and token management automatically.

Proxy API calls

Node.js

import { ScalekitClient } from '@scalekit-sdk/node';
import 'dotenv/config';

const connectionName = 'figma'; // get your connection name from connection configurations
const identifier = 'user_123';  // your unique user identifier

// Get your credentials from app.scalekit.com → Developers → Settings → API Credentials
const scalekit = new ScalekitClient(
  process.env.SCALEKIT_ENV_URL,
  process.env.SCALEKIT_CLIENT_ID,
  process.env.SCALEKIT_CLIENT_SECRET
);
const actions = scalekit.actions;

// Step 1: Generate an authorization link and present it to your user
const { link } = await actions.getAuthorizationLink({
  connectionName,
  identifier,
});
console.log('Authorize Figma:', link);
process.stdout.write('Press Enter after authorizing...');
await new Promise(r => process.stdin.once('data', r));

// Step 2: Make API requests via the Scalekit proxy — no token management needed
const me = await actions.request({
  connectionName,
  identifier,
  path: '/v1/me',
  method: 'GET',
});
console.log('Authenticated user:', me);

// Example: fetch a file's document tree
const file = await actions.request({
  connectionName,
  identifier,
  path: '/v1/files/YOUR_FILE_KEY',
  method: 'GET',
});
console.log('File:', file);

Python

import scalekit.client, os
from dotenv import load_dotenv
load_dotenv()

connection_name = "figma"  # get your connection name from connection configurations
identifier = "user_123"   # your unique user identifier

# Get your credentials from app.scalekit.com → Developers → Settings → API Credentials
scalekit_client = scalekit.client.ScalekitClient(
    client_id=os.getenv("SCALEKIT_CLIENT_ID"),
    client_secret=os.getenv("SCALEKIT_CLIENT_SECRET"),
    env_url=os.getenv("SCALEKIT_ENV_URL"),
)
actions = scalekit_client.actions

# Step 1: Generate an authorization link and present it to your user
link_response = actions.get_authorization_link(
    connection_name=connection_name,
    identifier=identifier
)
print("Authorize Figma:", link_response.link)
input("Press Enter after authorizing...")

# Step 2: Make API requests via the Scalekit proxy — no token management needed
me = actions.request(
    connection_name=connection_name,
    identifier=identifier,
    path="/v1/me",
    method="GET"
)
print("Authenticated user:", me)

# Example: fetch a file's document tree
file = actions.request(
    connection_name=connection_name,
    identifier=identifier,
    path="/v1/files/YOUR_FILE_KEY",
    method="GET"
)
print("File:", file)

Scalekit tools

Tool list

figma_activity_logs_list Returns activity log events for an organization (Enterprise only). Includes events for file edits, permissions changes, and user actions. 6 params ▾

Returns activity log events for an organization (Enterprise only). Includes events for file edits, permissions changes, and user actions.

Name Type Required Description

cursor string optional Cursor from previous response for pagination.

end_time integer optional Unix timestamp (seconds) to stop fetching events at.

event_type string optional Filter by a specific event type, e.g. 'file.update'.

limit integer optional Maximum number of events to return (1-1000, default 100).

order string optional Sort order: asc or desc by timestamp. Default is desc.

start_time integer optional Unix timestamp (seconds) to start fetching events from.

figma_comment_reaction_create Adds an emoji reaction to a comment in a Figma file. 3 params ▾

Adds an emoji reaction to a comment in a Figma file.

Name Type Required Description

comment_id string required The ID of the comment to react to.

emoji string required The emoji to react with (e.g. ':thumbsup:').

file_key string required The unique key of the Figma file.

figma_comment_reaction_delete Removes the authenticated user's emoji reaction from a comment in a Figma file. 3 params ▾

Removes the authenticated user's emoji reaction from a comment in a Figma file.

Name Type Required Description

comment_id string required The ID of the comment to remove reaction from.

emoji string required The emoji reaction to remove (e.g. ':thumbsup:').

file_key string required The unique key of the Figma file.

figma_comment_reactions_list Returns a list of emoji reactions on a specific comment in a Figma file. 3 params ▾

Returns a list of emoji reactions on a specific comment in a Figma file.

Name Type Required Description

comment_id string required The ID of the comment to get reactions for.

file_key string required The unique key of the Figma file.

cursor string optional Pagination cursor for next page of results.

figma_component_get Returns metadata for a published component by its key, including name, description, thumbnail, and containing file information. 1 param ▾

Returns metadata for a published component by its key, including name, description, thumbnail, and containing file information.

Name Type Required Description

key string required The unique key of the component.

figma_component_set_get Returns metadata for a published component set (a group of related component variants) by its key. 1 param ▾

Returns metadata for a published component set (a group of related component variants) by its key.

Name Type Required Description

key string required The unique key of the component set.

figma_dev_resource_create Creates a dev resource (external link) attached to a node in a Figma file, such as a link to Storybook, Jira, or documentation. 4 params ▾

Creates a dev resource (external link) attached to a node in a Figma file, such as a link to Storybook, Jira, or documentation.

Name Type Required Description

file_key string required The key of the Figma file containing the target node.

name string required Display name for the dev resource link.

node_id string required The ID of the node to attach the dev resource to.

url string required The URL of the external resource.

figma_dev_resource_delete Permanently deletes a dev resource from a node in a Figma file. 2 params ▾

Permanently deletes a dev resource from a node in a Figma file.

Name Type Required Description

dev_resource_id string required The ID of the dev resource to delete.

file_key string required The key of the Figma file containing the dev resource.

figma_dev_resource_update Updates an existing dev resource attached to a node in a Figma file. 3 params ▾

Updates an existing dev resource attached to a node in a Figma file.

Name Type Required Description

dev_resource_id string required The ID of the dev resource to update.

name string optional New display name for the dev resource.

url string optional New URL for the dev resource.

figma_dev_resources_list Returns dev resources (links to external tools like Storybook, Jira, etc.) attached to nodes in a Figma file. 2 params ▾

Returns dev resources (links to external tools like Storybook, Jira, etc.) attached to nodes in a Figma file.

Name Type Required Description

file_key string required The key of the Figma file to get dev resources for.

node_ids string optional Comma-separated node IDs to filter by. Omit to return all dev resources in the file.

figma_file_comment_create Posts a new comment on a Figma file. Can be placed at a specific canvas position or anchored to a specific node. 3 params ▾

Posts a new comment on a Figma file. Can be placed at a specific canvas position or anchored to a specific node.

Name Type Required Description

file_key string required The unique key of the Figma file.

message string required The text content of the comment.

client_meta string optional JSON string specifying position or node anchor for the comment, e.g. {"node_id":"1:2","node_offset":{"x":0,"y":0}}.

figma_file_comment_delete Deletes a specific comment from a Figma file. Only the comment author or file owner can delete a comment. 2 params ▾

Deletes a specific comment from a Figma file. Only the comment author or file owner can delete a comment.

Name Type Required Description

comment_id string required The ID of the comment to delete.

file_key string required The unique key of the Figma file.

figma_file_comments_list Returns all comments left on a Figma file, including their text, author, position, and resolved status. 2 params ▾

Returns all comments left on a Figma file, including their text, author, position, and resolved status.

Name Type Required Description

file_key string required The unique key of the Figma file.

as_md boolean optional If true, returns comment text as Markdown.

figma_file_component_sets_list Returns all published component sets in a Figma file. 1 param ▾

Returns all published component sets in a Figma file.

Name Type Required Description

file_key string required The unique key of the Figma file.

figma_file_components_list Returns a list of all published components in a Figma file, including their keys, names, descriptions, and thumbnails. 1 param ▾

Returns a list of all published components in a Figma file, including their keys, names, descriptions, and thumbnails.

Name Type Required Description

file_key string required The unique key of the Figma file.

figma_file_get Returns a Figma file's full document tree including all nodes, components, styles, and metadata. 3 params ▾

Returns a Figma file's full document tree including all nodes, components, styles, and metadata.

Name Type Required Description

file_key string required The unique key of the Figma file (found in the file URL).

depth integer optional Depth of the document tree to return (1-4). Lower depth returns faster.

version string optional A specific version ID to get. Omit to get the current version.

figma_file_image_fills_get Returns download URLs for all image fills used in a Figma file. Image fills are images that have been applied as fills to nodes. 1 param ▾

Returns download URLs for all image fills used in a Figma file. Image fills are images that have been applied as fills to nodes.

Name Type Required Description

file_key string required The unique key of the Figma file.

figma_file_images_render Renders nodes from a Figma file as images (PNG, JPG, SVG, or PDF) and returns URLs to download them. 5 params ▾

Renders nodes from a Figma file as images (PNG, JPG, SVG, or PDF) and returns URLs to download them.

Name Type Required Description

file_key string required The unique key of the Figma file.

ids string required Comma-separated list of node IDs to render.

format string optional Image format: jpg, png, svg, or pdf. Default is png.

scale number optional Image scale factor (0.01 to 4). Default is 1.

version string optional A specific version ID to render from.

figma_file_nodes_get Returns specific nodes from a Figma file by their node IDs, along with their children and associated styles and components. 4 params ▾

Returns specific nodes from a Figma file by their node IDs, along with their children and associated styles and components.

Name Type Required Description

file_key string required The unique key of the Figma file.

ids string required Comma-separated list of node IDs to retrieve.

depth integer optional Depth of the document tree to return for each node.

version string optional A specific version ID to fetch nodes from.

figma_file_styles_list Returns all published styles in a Figma file, including color, text, effect, and grid styles. 1 param ▾

Returns all published styles in a Figma file, including color, text, effect, and grid styles.

Name Type Required Description

file_key string required The unique key of the Figma file.

figma_file_variables_local_get Returns all local variables and variable collections defined in a Figma file. Requires the variables:read scope. 1 param ▾

Returns all local variables and variable collections defined in a Figma file. Requires the variables:read scope.

Name Type Required Description

file_key string required The unique key of the Figma file.

figma_file_variables_published_get Returns all published variables and variable collections from a Figma file's library. Requires the variables:read scope. 1 param ▾

Returns all published variables and variable collections from a Figma file's library. Requires the variables:read scope.

Name Type Required Description

file_key string required The unique key of the Figma file.

figma_file_variables_update Creates, updates, or deletes variables and variable collections in a Figma file. Accepts a JSON payload describing the changes. Requires the variables:write scope. 2 params ▾

Creates, updates, or deletes variables and variable collections in a Figma file. Accepts a JSON payload describing the changes. Requires the variables:write scope.

Name Type Required Description

file_key string required The unique key of the Figma file.

payload string required JSON string with variableCollections, variables, and variableModeValues arrays describing changes to apply.

figma_file_versions_list Returns the version history of a Figma file, including version IDs, labels, descriptions, and creation timestamps. 4 params ▾

Returns the version history of a Figma file, including version IDs, labels, descriptions, and creation timestamps.

Name Type Required Description

file_key string required The unique key of the Figma file.

after string optional Return versions created after this version ID (for pagination).

before string optional Return versions created before this version ID (for pagination).

page_size integer optional Number of versions to return per page.

figma_library_analytics_component_actions_get Returns analytics data on component insertion, detachment, and usage actions from a library file. Enterprise only. 5 params ▾

Returns analytics data on component insertion, detachment, and usage actions from a library file. Enterprise only.

Name Type Required Description

file_key string required The key of the library Figma file.

group_by string required Dimension to group results by: component or team.

cursor string optional Pagination cursor from previous response.

end_date string optional End date for analytics in YYYY-MM-DD format.

start_date string optional Start date for analytics in YYYY-MM-DD format.

figma_library_analytics_component_usages_get Returns a snapshot of how many times each component from a library is used across the organization. Enterprise only. 2 params ▾

Returns a snapshot of how many times each component from a library is used across the organization. Enterprise only.

Name Type Required Description

file_key string required The key of the library Figma file.

cursor string optional Pagination cursor from previous response.

figma_library_analytics_style_actions_get Returns analytics data on style insertion and detachment actions from a library file. Enterprise only. 5 params ▾

Returns analytics data on style insertion and detachment actions from a library file. Enterprise only.

Name Type Required Description

file_key string required The key of the library Figma file.

group_by string required Dimension to group results by: style or team.

cursor string optional Pagination cursor from previous response.

end_date string optional End date for analytics in YYYY-MM-DD format.

start_date string optional Start date for analytics in YYYY-MM-DD format.

figma_library_analytics_style_usages_get Returns a snapshot of how many times each style from a library is used across the organization. Enterprise only. 2 params ▾

Returns a snapshot of how many times each style from a library is used across the organization. Enterprise only.

Name Type Required Description

file_key string required The key of the library Figma file.

cursor string optional Pagination cursor from previous response.

figma_library_analytics_variable_actions_get Returns analytics data on variable actions from a library file. Enterprise only. 5 params ▾

Returns analytics data on variable actions from a library file. Enterprise only.

Name Type Required Description

file_key string required The key of the library Figma file.

group_by string required Dimension to group results by: variable or team.

cursor string optional Pagination cursor from previous response.

end_date string optional End date for analytics in YYYY-MM-DD format.

start_date string optional Start date for analytics in YYYY-MM-DD format.

figma_library_analytics_variable_usages_get Returns a snapshot of how many times each variable from a library is used across the organization. Enterprise only. 2 params ▾

Returns a snapshot of how many times each variable from a library is used across the organization. Enterprise only.

Name Type Required Description

file_key string required The key of the library Figma file.

cursor string optional Pagination cursor from previous response.

figma_me_get Returns the authenticated user's information including name, email, and profile image URL. 0 params ▾

Returns the authenticated user's information including name, email, and profile image URL.

figma_payments_get Returns payment and plan information for a Figma user or resource, including subscription status and plan type. 3 params ▾

Returns payment and plan information for a Figma user or resource, including subscription status and plan type.

Name Type Required Description

resource_id string optional The ID of the plugin or widget resource.

resource_type string optional The type of resource: plugin or widget.

user_id string optional The ID of the user to get payment info for.

figma_project_files_list Returns all files in a Figma project, including file keys, names, thumbnails, and last modified timestamps. 2 params ▾

Returns all files in a Figma project, including file keys, names, thumbnails, and last modified timestamps.

Name Type Required Description

project_id string required The ID of the Figma project.

branch_data boolean optional If true, includes branch metadata for each file.

figma_style_get Returns metadata for a published style by its key, including name, description, style type, and containing file information. 1 param ▾

Returns metadata for a published style by its key, including name, description, style type, and containing file information.

Name Type Required Description

key string required The unique key of the style.

figma_team_component_sets_list Returns all published component sets in a Figma team library, with pagination support. 4 params ▾

Returns all published component sets in a Figma team library, with pagination support.

Name Type Required Description

team_id string required The ID of the Figma team.

after integer optional Cursor for the next page of results.

before integer optional Cursor for the previous page of results.

page_size integer optional Number of component sets to return per page.

figma_team_components_list Returns all published components in a Figma team library, with pagination support. 4 params ▾

Returns all published components in a Figma team library, with pagination support.

Name Type Required Description

team_id string required The ID of the Figma team.

after integer optional Cursor for the next page of results.

before integer optional Cursor for the previous page of results.

page_size integer optional Number of components to return per page.

figma_team_get Returns metadata about a Figma team, including its name and member count. 1 param ▾

Returns metadata about a Figma team, including its name and member count.

Name Type Required Description

team_id string required The ID of the Figma team.

figma_team_projects_list Returns all projects within a Figma team that the authenticated user has access to. 1 param ▾

Returns all projects within a Figma team that the authenticated user has access to.

Name Type Required Description

team_id string required The ID of the Figma team.

figma_team_styles_list Returns all published styles in a Figma team library, with pagination support. 4 params ▾

Returns all published styles in a Figma team library, with pagination support.

Name Type Required Description

team_id string required The ID of the Figma team.

after integer optional Cursor for the next page of results.

before integer optional Cursor for the previous page of results.

page_size integer optional Number of styles to return per page.

figma_team_webhooks_list Returns all webhooks registered for a Figma team. 1 param ▾

Returns all webhooks registered for a Figma team.

Name Type Required Description

team_id string required The ID of the Figma team.

figma_webhook_create Creates a new webhook that sends events to the specified endpoint URL when Figma events occur in a team. 6 params ▾

Creates a new webhook that sends events to the specified endpoint URL when Figma events occur in a team.

Name Type Required Description

endpoint string required The HTTPS URL to send webhook payloads to.

event_type string required The event type to subscribe to: FILE_UPDATE, FILE_DELETE, FILE_VERSION_UPDATE, FILE_COMMENT, LIBRARY_PUBLISH.

passcode string required A passcode included in the webhook payload for verification.

team_id string required The ID of the team to subscribe to events for.

description string optional Optional description for the webhook.

status string optional Webhook status: ACTIVE or PAUSED.

figma_webhook_delete Permanently deletes a Figma webhook. This stops all future event deliveries for this webhook. 1 param ▾

Permanently deletes a Figma webhook. This stops all future event deliveries for this webhook.

Name Type Required Description

webhook_id string required The ID of the webhook to delete.

figma_webhook_get Returns details of a specific Figma webhook by its ID, including event type, endpoint, and status. 1 param ▾

Returns details of a specific Figma webhook by its ID, including event type, endpoint, and status.

Name Type Required Description

webhook_id string required The ID of the webhook.

figma_webhook_requests_list Returns the delivery history for a webhook, including request payloads, response codes, and timestamps. 1 param ▾

Returns the delivery history for a webhook, including request payloads, response codes, and timestamps.

Name Type Required Description

webhook_id string required The ID of the webhook.

figma_webhook_update Updates an existing Figma webhook's endpoint, passcode, status, or description. 5 params ▾

Updates an existing Figma webhook's endpoint, passcode, status, or description.

Name Type Required Description

webhook_id string required The ID of the webhook to update.

description string optional Updated description for the webhook.

endpoint string optional New HTTPS URL to send webhook payloads to.

passcode string optional New passcode for webhook verification.

status string optional Webhook status: ACTIVE or PAUSED.
