Miro

What you can do

Connect this agent connector to let your agent:

• List board members, tags, mindmap nodes — Returns a list of members on a Miro board
• Get connector, image, group items — Retrieves details of a specific connector (line/arrow) on a Miro board
• Create shape, embed, frame — Creates a shape item on a Miro board
• Remove item tag, board member — Removes a tag from a specific item on a Miro board
• Invite team member — Invites a user to a team by email (Enterprise only)
• Delete team, item, sticky note — Deletes a team from an organization (Enterprise only)

Authentication

This connector uses OAuth 2.0. Scalekit acts as the OAuth client: it redirects your user to Miro, obtains an access token, and automatically refreshes it before it expires. Your agent code never handles tokens directly — you only pass a connectionName and a user identifier.

You supply your Miro Connected App credentials (Client ID + Secret) once per environment in the Scalekit dashboard.

Set up the connector

Register your Scalekit environment with the Miro connector so Scalekit handles the OAuth flow and token lifecycle for your users. Follow every step below from start to finish — by the end you will have a working connection.

1. Create a Miro app

   You need a Miro OAuth app to get the Client ID and Client Secret that Scalekit will use to authorize your users.

   Go to the Miro Developer Portal:

   • Open miro.com/app/settings/user-profile/apps in your browser.
   • Sign in with the Miro account you use to manage your integration.
   • After signing in, you land on the My Apps page.

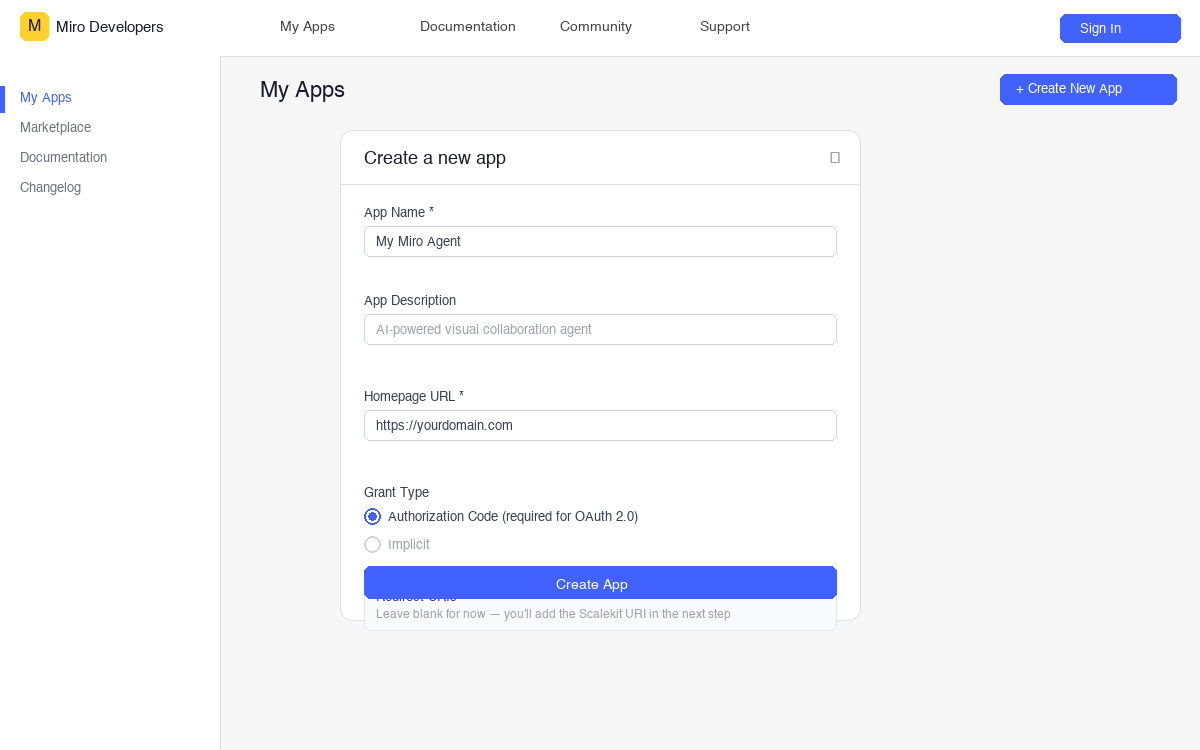

   Create a new app:

   • Click Create New App (top right of the page).

   • Fill in the form:

     Field	What to enter
     App Name	A recognizable name, e.g. My AI Collaboration Agent
     App Description	Brief description, e.g. AI agent for managing Miro boards
     Homepage URL	Your app’s public URL. For testing you can use https://localhost
     Grant Type	Select Authorization Code — this is required for OAuth 2.0

   • Leave Redirect URIs blank for now. You will add it in the next step.

   • Click Create App.

   After the app is created, Miro takes you to the app’s OAuth Settings page. Keep this tab open.

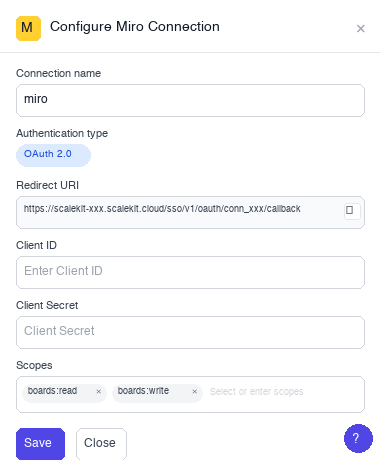

2. Copy the redirect URI from Scalekit

   Scalekit gives you a callback URL that Miro will redirect users back to after they authorize your app. You need to register this URL in your Miro app.

   In the Scalekit dashboard:

   • Go to app.scalekit.com and sign in.
   • In the left sidebar, click Agent Auth.
   • Click Create Connection.
   • Search for Miro and click Create.
   • A connection details panel opens. Find the Redirect URI field — it looks like:

     https://<YOUR_ENV>.scalekit.cloud/sso/v1/oauth/conn_<ID>/callback

   • Click the copy icon next to the Redirect URI to copy it to your clipboard.

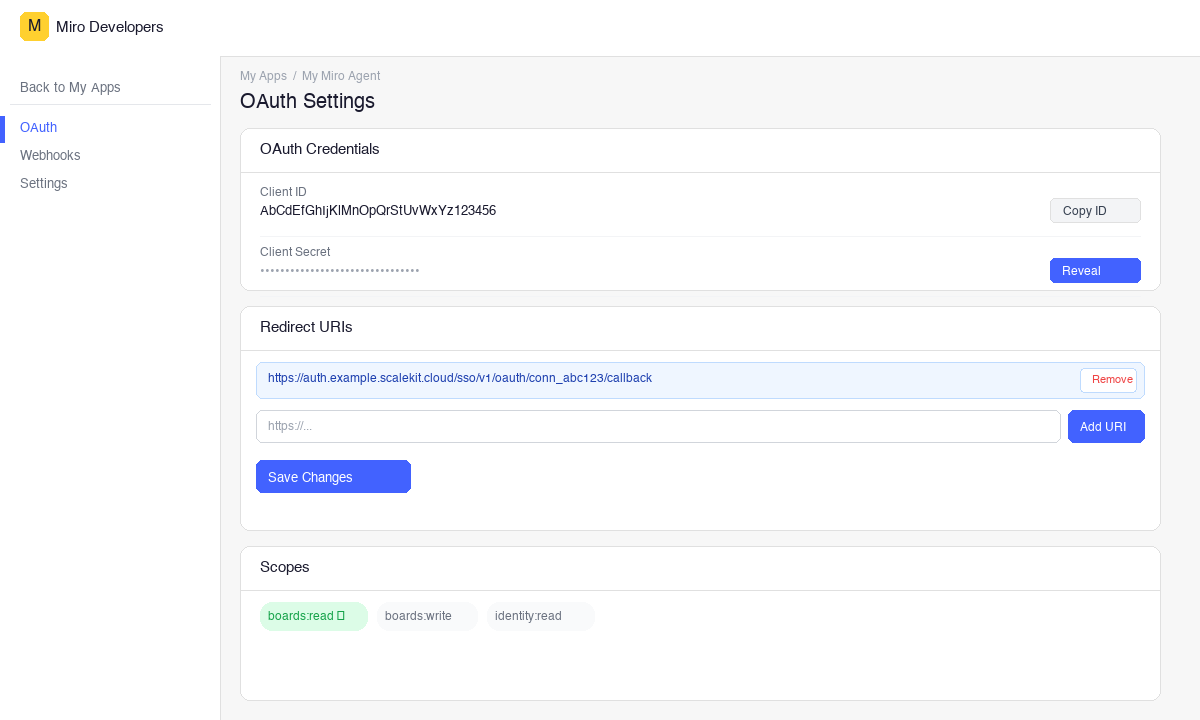

3. Register the redirect URI and copy credentials

   Switch back to the Miro Developer Portal tab.

   • Make sure you are on the OAuth Settings page of your app.
   • Scroll to the Redirect URIs section.
   • Paste the redirect URI you copied from Scalekit into the input box and click Add URI.
   • Click Save Changes at the bottom of the page.

   Copy your credentials:

   • Scroll to OAuth Credentials at the top of the page.
   • Client ID — shown in plain text. Click Copy ID to copy it.
   • Client Secret — click Reveal to show the secret, then copy it.

   Keep both values in a password manager or secrets vault. You will enter them into Scalekit in the next step.



   Client secret is shown only once

   The Client Secret is masked after initial creation. If you lose it, you must generate a new one in the Miro app settings — this invalidates all existing connections until you update them in Scalekit.

   Redirect URI must match exactly

   The redirect URI must match character-for-character — including the https:// prefix and the full path. Any mismatch causes a redirect_uri_mismatch error during the OAuth flow.

4. Configure permissions (scopes)

   Scopes control which Miro resources your app can access on behalf of each user. You select the scopes in Scalekit when saving your credentials.

   Scope	Access granted	Plan required
   boards:read	Read boards, members, and all board items	All plans
   boards:write	Create, update, and delete boards, members, and items	All plans
   identity:read	Read current user profile including email	All plans
   team:read	Read current team information	All plans
   auditlogs:read	Read audit logs for the organization	Enterprise only
   organizations:read	Read organization information	Enterprise only
   organizations:teams:read	Read teams within an organization	Enterprise only
   organizations:teams:write	Create and manage teams within an organization	Enterprise only
   projects:read	Read projects within teams	Enterprise only
   projects:write	Create and manage projects within teams	Enterprise only

   For most integrations, boards:read and boards:write are sufficient.

   Request only what you need

   Users see a list of requested permissions on the Miro authorization screen. Fewer scopes increases trust and approval rates. Only enable the scopes your integration actually uses.

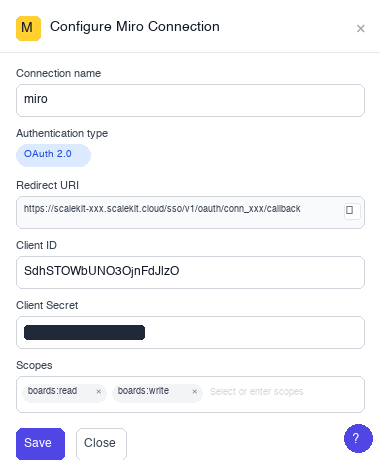

5. Add credentials in Scalekit

   Switch back to the Scalekit dashboard tab.

   • Go to Agent Auth → Connections and open the Miro connection you created in step 2.

   • Fill in the credentials form:

     Field	Value
     Client ID	Paste the Client ID from step 3
     Client Secret	Paste the Client Secret from step 3
     Permissions	Enter the scopes your app needs, e.g. boards:read boards:write

   • Click Save.



   Your Miro connection is now configured. Scalekit will use these credentials to run the OAuth flow whenever a user connects their Miro account.

   Scopes must match in both places

   The scopes entered here must match what you enable in your Miro app. A mismatch causes an invalid_scope error when users try to authorize. If you add more scopes later, update both your Miro app and this Scalekit connection.

Code examples

Connect a user’s Miro account and make API calls on their behalf — Scalekit handles OAuth and token management automatically.

Proxy API calls

Node.js

import { ScalekitClient } from '@scalekit-sdk/node';
import 'dotenv/config';

const connectionName = 'miro'; // get your connection name from connection configurations
const identifier = 'user_123';  // your unique user identifier

// Get your credentials from app.scalekit.com → Developers → Settings → API Credentials
const scalekit = new ScalekitClient(
  process.env.SCALEKIT_ENV_URL,
  process.env.SCALEKIT_CLIENT_ID,
  process.env.SCALEKIT_CLIENT_SECRET
);
const actions = scalekit.actions;

// Step 1: Generate an authorization link and present it to your user
const { link } = await actions.getAuthorizationLink({
  connectionName,
  identifier,
});
console.log('Authorize Miro:', link);
process.stdout.write('Press Enter after authorizing...');
await new Promise(r => process.stdin.once('data', r));

// Step 2: Make API requests via the Scalekit proxy — no token management needed
// Example: list boards
const boards = await actions.request({
  connectionName,
  identifier,
  path: '/v2/boards',
  method: 'GET',
});
console.log('Boards:', boards);

// Example: create a sticky note on a board
const stickyNote = await actions.request({
  connectionName,
  identifier,
  path: '/v2/boards/YOUR_BOARD_ID/sticky_notes',
  method: 'POST',
  body: {
    data: { content: 'Hello from my AI agent!' },
    style: { fillColor: 'yellow' },
  },
});
console.log('Sticky note created:', stickyNote);

Python

import scalekit.client, os
from dotenv import load_dotenv
load_dotenv()

connection_name = "miro"  # get your connection name from connection configurations
identifier = "user_123"   # your unique user identifier

# Get your credentials from app.scalekit.com → Developers → Settings → API Credentials
scalekit_client = scalekit.client.ScalekitClient(
    client_id=os.getenv("SCALEKIT_CLIENT_ID"),
    client_secret=os.getenv("SCALEKIT_CLIENT_SECRET"),
    env_url=os.getenv("SCALEKIT_ENV_URL"),
)
actions = scalekit_client.actions

# Step 1: Generate an authorization link and present it to your user
link_response = actions.get_authorization_link(
    connection_name=connection_name,
    identifier=identifier
)
print("Authorize Miro:", link_response.link)
input("Press Enter after authorizing...")

# Step 2: Make API requests via the Scalekit proxy — no token management needed
# Example: list boards
boards = actions.request(
    connection_name=connection_name,
    identifier=identifier,
    path="/v2/boards",
    method="GET"
)
print("Boards:", boards)

# Example: create a sticky note on a board
sticky_note = actions.request(
    connection_name=connection_name,
    identifier=identifier,
    path="/v2/boards/YOUR_BOARD_ID/sticky_notes",
    method="POST",
    body={
        "data": {"content": "Hello from my AI agent!"},
        "style": {"fillColor": "yellow"},
    }
)
print("Sticky note created:", sticky_note)

Scalekit tools

Tool list

miro_app_card_create Creates an app card item on a Miro board. 8 params ▾

Creates an app card item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

description string optional Description of the app card.

parent_id string optional ID of parent frame to nest this item inside.

position_x number optional X coordinate on the board.

position_y number optional Y coordinate on the board.

status string optional Status: disconnected | connected | disabled.

title string optional Title of the app card.

width number optional Width in board units.

miro_app_card_delete Deletes an app card item from a Miro board. 2 params ▾

Deletes an app card item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

miro_app_card_get Retrieves an app card item from a Miro board. 2 params ▾

Retrieves an app card item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

miro_app_card_update Updates an existing app card item on a Miro board. 9 params ▾

Updates an existing app card item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

description string optional Description of the app card.

parent_id string optional ID of parent frame to nest this item inside.

position_x number optional X coordinate on the board.

position_y number optional Y coordinate on the board.

status string optional Status: disconnected | connected | disabled.

title string optional Title of the app card.

width number optional Width in board units.

miro_audit_logs_get Retrieves audit logs for the organization (Enterprise only). Returns events for the specified date range (max 90 days). 5 params ▾

Retrieves audit logs for the organization (Enterprise only). Returns events for the specified date range (max 90 days).

Name Type Required Description

created_after string required Start of date range in ISO 8601.

created_before string required End of date range in ISO 8601.

cursor string optional Pagination cursor.

limit integer optional Max results per page (1-100).

sorting string optional Sort order: asc | desc.

miro_board_copy Creates a copy of an existing Miro board, optionally in a different team. 2 params ▾

Creates a copy of an existing Miro board, optionally in a different team.

Name Type Required Description

board_id string required Unique identifier of the board to copy.

team_id string optional Team ID to copy the board into. Defaults to the original board's team.

miro_board_create Creates a new Miro board. If no name is provided, Miro defaults to 'Untitled'. 4 params ▾

Creates a new Miro board. If no name is provided, Miro defaults to 'Untitled'.

Name Type Required Description

description string optional Board description (max 300 characters).

name string optional Board name (max 60 characters).

project_id string optional ID of the project/Space to add the board to.

team_id string optional ID of the team to create the board in.

miro_board_delete Permanently deletes a Miro board and all its contents. 1 param ▾

Permanently deletes a Miro board and all its contents.

Name Type Required Description

board_id string required Unique identifier of the board to delete.

miro_board_export_create Creates a board export job for eDiscovery (Enterprise only). Returns a job ID to poll for status. 4 params ▾

Creates a board export job for eDiscovery (Enterprise only). Returns a job ID to poll for status.

Name Type Required Description

board_ids string required JSON array of board IDs to export, e.g. ["id1","id2"]

org_id string required Organization ID.

request_id string required Unique request ID (UUID) to identify this export job.

format string optional Export format: pdf | csv.

miro_board_export_job_get Gets the status of a board export job (Enterprise only). 2 params ▾

Gets the status of a board export job (Enterprise only).

Name Type Required Description

job_id string required Export job ID.

org_id string required Organization ID.

miro_board_export_job_results_get Retrieves the results/download URLs of a completed board export job (Enterprise only). 2 params ▾

Retrieves the results/download URLs of a completed board export job (Enterprise only).

Name Type Required Description

job_id string required Export job ID.

org_id string required Organization ID.

miro_board_export_jobs_list Lists all board export jobs for an organization (Enterprise only). 3 params ▾

Lists all board export jobs for an organization (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

cursor string optional Pagination cursor.

limit integer optional Max results.

miro_board_get Retrieves details of a specific Miro board by its ID. 1 param ▾

Retrieves details of a specific Miro board by its ID.

Name Type Required Description

board_id string required Unique identifier of the Miro board.

miro_board_member_get Retrieves details of a specific member on a Miro board. 2 params ▾

Retrieves details of a specific member on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

member_id string required Unique identifier of the board member.

miro_board_member_remove Removes a member from a Miro board. 2 params ▾

Removes a member from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

member_id string required Unique identifier of the member to remove.

miro_board_member_update Updates the role of a member on a Miro board. 3 params ▾

Updates the role of a member on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

member_id string required Unique identifier of the board member to update.

role string required New role for the member. Valid values: viewer, commenter, editor, coowner.

miro_board_members_list Returns a list of members on a Miro board. 1 param ▾

Returns a list of members on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

miro_board_members_share Shares a Miro board with one or more users by email address, assigning them a role. 3 params ▾

Shares a Miro board with one or more users by email address, assigning them a role.

Name Type Required Description

board_id string required Unique identifier of the board to share.

emails string required JSON array of email addresses to invite.

role string required Role to assign to the invited users. Valid values: viewer, commenter, editor, coowner.

miro_board_update Updates the name or description of a Miro board. 3 params ▾

Updates the name or description of a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board to update.

description string optional New board description (max 300 characters).

name string optional New board name (max 60 characters).

miro_boards_list Returns a list of Miro boards the authenticated user has access to. Supports filtering by team, project, owner, and search query. 0 params ▾

Returns a list of Miro boards the authenticated user has access to. Supports filtering by team, project, owner, and search query.

miro_card_create Creates a card item on a Miro board. Cards can have a title, description, assignee, and due date. 10 params ▾

Creates a card item on a Miro board. Cards can have a title, description, assignee, and due date.

Name Type Required Description

board_id string required Unique identifier of the board.

assignee_id string optional User ID to assign the card to.

card_theme string optional Card theme color as hex code (e.g. #2d9bf0).

description string optional Description/body text of the card.

due_date string optional Due date in ISO 8601 format (e.g. 2024-12-31T23:59:59Z).

parent_id string optional ID of a parent frame to place the card inside.

position_x number optional X coordinate on the board (0 = center).

position_y number optional Y coordinate on the board (0 = center).

title string optional Title of the card.

width number optional Width of the card in board units.

miro_card_delete Deletes a card item from a Miro board. 2 params ▾

Deletes a card item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the card to delete.

miro_card_get Retrieves details of a specific card item on a Miro board. 2 params ▾

Retrieves details of a specific card item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the card item.

miro_card_update Updates the content, assignment, due date, or position of a card on a Miro board. 8 params ▾

Updates the content, assignment, due date, or position of a card on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the card to update.

assignee_id string optional Updated assignee user ID.

description string optional Updated card description.

due_date string optional Updated due date in ISO 8601 format.

position_x number optional Updated X coordinate on the board.

position_y number optional Updated Y coordinate on the board.

title string optional Updated card title.

miro_connector_create Creates a connector (line/arrow) between two existing items on a Miro board. 11 params ▾

Creates a connector (line/arrow) between two existing items on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

end_item_id string required ID of the item where the connector ends.

start_item_id string required ID of the item where the connector starts.

caption string optional Text label to display on the connector.

end_snap_to string optional Attachment point on the end item. Valid values: auto, top, right, bottom, left.

end_stroke_cap string optional End endpoint cap style. Valid values: none, arrow, filled_arrow, circle, filled_circle, diamond, filled_diamond, bar, stealth.

shape string optional Connector line style. Valid values: straight, elbowed, curved.

start_snap_to string optional Attachment point on the start item. Valid values: auto, top, right, bottom, left.

start_stroke_cap string optional Start endpoint cap style. Valid values: none, arrow, filled_arrow, circle, filled_circle, diamond, filled_diamond, bar, stealth.

stroke_color string optional Line color as hex code.

stroke_width string optional Line thickness as a string number.

miro_connector_delete Deletes a connector (line/arrow) from a Miro board. 2 params ▾

Deletes a connector (line/arrow) from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

connector_id string required Unique identifier of the connector to delete.

miro_connector_get Retrieves details of a specific connector (line/arrow) on a Miro board. 2 params ▾

Retrieves details of a specific connector (line/arrow) on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

connector_id string required Unique identifier of the connector.

miro_connector_update Updates the style, shape, or endpoints of a connector on a Miro board. 7 params ▾

Updates the style, shape, or endpoints of a connector on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

connector_id string required Unique identifier of the connector to update.

caption string optional Updated text label on the connector.

end_stroke_cap string optional Updated end endpoint cap style (e.g. arrow, none, filled_arrow).

shape string optional Updated line style. Valid values: straight, elbowed, curved.

stroke_color string optional Updated line color as hex code.

stroke_width string optional Updated line thickness as a string number.

miro_connectors_list Returns all connector (line/arrow) items on a Miro board. 2 params ▾

Returns all connector (line/arrow) items on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

cursor string optional Cursor token from a previous response for pagination.

miro_data_classification_board_get Retrieves the data classification label for a specific board (Enterprise only). 3 params ▾

Retrieves the data classification label for a specific board (Enterprise only).

Name Type Required Description

board_id string required Unique identifier of the board.

org_id string required Organization ID.

team_id string required Team ID.

miro_data_classification_board_set Sets the data classification label for a specific board (Enterprise only). 4 params ▾

Sets the data classification label for a specific board (Enterprise only).

Name Type Required Description

board_id string required Unique identifier of the board.

label_id string required Classification label ID.

org_id string required Organization ID.

team_id string required Team ID.

miro_data_classification_org_get Retrieves data classification label settings for the organization (Enterprise only). 1 param ▾

Retrieves data classification label settings for the organization (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

miro_data_classification_team_get Retrieves data classification settings for a team (Enterprise only). 2 params ▾

Retrieves data classification settings for a team (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

team_id string required Team ID.

miro_document_create Creates a document item on a Miro board from a publicly accessible URL. 8 params ▾

Creates a document item on a Miro board from a publicly accessible URL.

Name Type Required Description

board_id string required Unique identifier of the board.

url string required Publicly accessible URL of the document.

height number optional Height in board units.

parent_id string optional ID of parent frame to nest this item inside.

position_x number optional X coordinate on the board.

position_y number optional Y coordinate on the board.

title string optional Title of the document item.

width number optional Width in board units.

miro_document_delete Deletes a document item from a Miro board. 2 params ▾

Deletes a document item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

miro_document_get Retrieves a document item from a Miro board. 2 params ▾

Retrieves a document item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

miro_document_update Updates an existing document item on a Miro board. 9 params ▾

Updates an existing document item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

height number optional Height in board units.

parent_id string optional ID of parent frame to nest this item inside.

position_x number optional X coordinate on the board.

position_y number optional Y coordinate on the board.

title string optional Title of the document item.

url string optional New URL for the document.

width number optional Width in board units.

miro_embed_create Creates an embed item on a Miro board from an oEmbed-compatible URL (YouTube, Vimeo, etc.). 9 params ▾

Creates an embed item on a Miro board from an oEmbed-compatible URL (YouTube, Vimeo, etc.).

Name Type Required Description

board_id string required Unique identifier of the board.

url string required URL of the content to embed (oEmbed-compatible).

height number optional Height in board units.

mode string optional Embed mode: inline | modal.

parent_id string optional ID of parent frame to nest this item inside.

position_x number optional X coordinate on the board.

position_y number optional Y coordinate on the board.

preview_url string optional URL of preview image to display.

width number optional Width in board units.

miro_embed_delete Deletes an embed item from a Miro board. 2 params ▾

Deletes an embed item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

miro_embed_get Retrieves an embed item from a Miro board. 2 params ▾

Retrieves an embed item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

miro_embed_update Updates an existing embed item on a Miro board. 10 params ▾

Updates an existing embed item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

height number optional Height in board units.

mode string optional Embed mode: inline | modal.

parent_id string optional ID of parent frame to nest this item inside.

position_x number optional X coordinate on the board.

position_y number optional Y coordinate on the board.

preview_url string optional URL of preview image to display.

url string optional New embed URL.

width number optional Width in board units.

miro_frame_create Creates a frame item on a Miro board. Frames group and organize other board items. 7 params ▾

Creates a frame item on a Miro board. Frames group and organize other board items.

Name Type Required Description

board_id string required Unique identifier of the board.

fill_color string optional Background fill color as hex code (e.g. #ffffffff for transparent).

height number optional Height of the frame in board units.

position_x number optional X coordinate on the board (0 = center).

position_y number optional Y coordinate on the board (0 = center).

title string optional Title displayed at the top of the frame.

width number optional Width of the frame in board units.

miro_frame_delete Deletes a frame item from a Miro board. 2 params ▾

Deletes a frame item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the frame to delete.

miro_frame_get Retrieves details of a specific frame item on a Miro board. 2 params ▾

Retrieves details of a specific frame item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the frame item.

miro_frame_update Updates the title, style, or position of a frame on a Miro board. 8 params ▾

Updates the title, style, or position of a frame on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the frame to update.

fill_color string optional Updated background fill color as hex code.

height number optional Updated height in board units.

position_x number optional Updated X coordinate on the board.

position_y number optional Updated Y coordinate on the board.

title string optional Updated frame title.

width number optional Updated width in board units.

miro_group_create Creates a group of items on a Miro board. Items in a group move together. 2 params ▾

Creates a group of items on a Miro board. Items in a group move together.

Name Type Required Description

board_id string required Unique identifier of the board.

item_ids string required JSON array of item IDs to group, e.g. ["id1","id2"]

miro_group_delete Deletes a group from a Miro board (items remain but are ungrouped). 2 params ▾

Deletes a group from a Miro board (items remain but are ungrouped).

Name Type Required Description

board_id string required Unique identifier of the board.

group_id string required Unique identifier of the group.

miro_group_items_get Retrieves a group and its items from a Miro board. 2 params ▾

Retrieves a group and its items from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

group_id string required Unique identifier of the group.

miro_groups_list Lists all item groups on a Miro board. 2 params ▾

Lists all item groups on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

cursor string optional Pagination cursor from previous response.

miro_image_create Creates an image item on a Miro board from a publicly accessible URL. 9 params ▾

Creates an image item on a Miro board from a publicly accessible URL.

Name Type Required Description

board_id string required Unique identifier of the board.

url string required Publicly accessible URL of the image.

height number optional Height of the image in board units.

parent_id string optional ID of a parent frame to place the image inside.

position_x number optional X coordinate on the board (0 = center).

position_y number optional Y coordinate on the board (0 = center).

rotation number optional Rotation angle in degrees.

title string optional Display name/title for the image item.

width number optional Width of the image in board units.

miro_image_delete Deletes an image item from a Miro board. 2 params ▾

Deletes an image item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the image item to delete.

miro_image_get Retrieves details of a specific image item on a Miro board. 2 params ▾

Retrieves details of a specific image item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the image item.

miro_image_update Updates the URL, title, position, or size of an image item on a Miro board. 8 params ▾

Updates the URL, title, position, or size of an image item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the image item to update.

position_x number optional Updated X coordinate on the board.

position_y number optional Updated Y coordinate on the board.

rotation number optional Updated rotation angle in degrees.

title string optional Updated title for the image.

url string optional Updated image URL.

width number optional Updated width in board units.

miro_item_delete Deletes a specific item from a Miro board. 2 params ▾

Deletes a specific item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item to delete.

miro_item_get Retrieves details of a specific item on a Miro board by its item ID. 2 params ▾

Retrieves details of a specific item on a Miro board by its item ID.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

miro_item_tag_attach Attaches an existing tag to a specific item on a Miro board. 3 params ▾

Attaches an existing tag to a specific item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item to attach the tag to.

tag_id string required Unique identifier of the tag to attach.

miro_item_tag_remove Removes a tag from a specific item on a Miro board. Does not delete the tag from the board. 3 params ▾

Removes a tag from a specific item on a Miro board. Does not delete the tag from the board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

tag_id string required Unique identifier of the tag to remove from the item.

miro_item_tags_get Returns all tags attached to a specific item on a Miro board. 2 params ▾

Returns all tags attached to a specific item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

miro_items_bulk_create Creates up to 20 board items in a single transactional request. Pass a JSON array of item objects as `items`. Each object must have a `type` field (sticky_note, text, shape, card, image, frame, etc.) and appropriate data. 2 params ▾

Creates up to 20 board items in a single transactional request. Pass a JSON array of item objects as `items`. Each object must have a `type` field (sticky_note, text, shape, card, image, frame, etc.) and appropriate data.

Name Type Required Description

board_id string required Unique identifier of the board.

items string required JSON array of item objects, each with "type" and item-specific fields.

miro_items_list Returns all items on a Miro board. Optionally filter by item type. 1 param ▾

Returns all items on a Miro board. Optionally filter by item type.

Name Type Required Description

board_id string required Unique identifier of the board.

miro_mindmap_node_create Creates a mind map node on a Miro board (experimental API). Omit parent_node_id for the root node. 3 params ▾

Creates a mind map node on a Miro board (experimental API). Omit parent_node_id for the root node.

Name Type Required Description

board_id string required Unique identifier of the board.

node_value string required Text content of the mind map node.

parent_node_id string optional ID of parent mind map node (omit for root node).

miro_mindmap_node_delete Deletes a mind map node and all its children from a Miro board (experimental API). 2 params ▾

Deletes a mind map node and all its children from a Miro board (experimental API).

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

miro_mindmap_node_get Retrieves a specific mind map node from a Miro board (experimental API). 2 params ▾

Retrieves a specific mind map node from a Miro board (experimental API).

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the item.

miro_mindmap_nodes_list Lists all mind map nodes on a Miro board (experimental API). 2 params ▾

Lists all mind map nodes on a Miro board (experimental API).

Name Type Required Description

board_id string required Unique identifier of the board.

cursor string optional Pagination cursor from previous response.

miro_oembed_get Returns oEmbed data for a Miro board URL so it can be embedded as a live iframe in external sites. 4 params ▾

Returns oEmbed data for a Miro board URL so it can be embedded as a live iframe in external sites.

Name Type Required Description

url string required Full URL of the Miro board.

format string optional Response format: json (default) or xml.

maxheight integer optional Maximum embed height in pixels.

maxwidth integer optional Maximum embed width in pixels.

miro_org_get Retrieves information about the organization (Enterprise only). 1 param ▾

Retrieves information about the organization (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

miro_org_member_get Retrieves a specific member of an organization (Enterprise only). 2 params ▾

Retrieves a specific member of an organization (Enterprise only).

Name Type Required Description

member_id string required Member ID.

org_id string required Organization ID.

miro_org_members_list Lists all members of an organization (Enterprise only). 5 params ▾

Lists all members of an organization (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

cursor string optional Pagination cursor.

emails string optional Comma-separated list of emails to filter by.

limit integer optional Max results per page.

role string optional Filter by role: admin | member.

miro_project_create Creates a project (space) in a team (Enterprise only). 4 params ▾

Creates a project (space) in a team (Enterprise only).

Name Type Required Description

name string required Project name.

org_id string required Organization ID.

team_id string required Team ID.

description string optional Project description.

miro_project_delete Deletes a project from a team (Enterprise only). 3 params ▾

Deletes a project from a team (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

project_id string required Project ID.

team_id string required Team ID.

miro_project_get Retrieves a specific project (Enterprise only). 3 params ▾

Retrieves a specific project (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

project_id string required Project ID.

team_id string required Team ID.

miro_project_member_add Adds a member to a project (Enterprise only). 5 params ▾

Adds a member to a project (Enterprise only).

Name Type Required Description

member_id string required Member ID to add.

org_id string required Organization ID.

project_id string required Project ID.

team_id string required Team ID.

role string optional Role: editor | commenter | viewer.

miro_project_member_delete Removes a member from a project (Enterprise only). 4 params ▾

Removes a member from a project (Enterprise only).

Name Type Required Description

member_id string required Member ID.

org_id string required Organization ID.

project_id string required Project ID.

team_id string required Team ID.

miro_project_members_list Lists members of a project (Enterprise only). 5 params ▾

Lists members of a project (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

project_id string required Project ID.

team_id string required Team ID.

cursor string optional Pagination cursor.

limit integer optional Max results.

miro_projects_list Lists all projects in a team (Enterprise only). 4 params ▾

Lists all projects in a team (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

team_id string required Team ID.

cursor string optional Pagination cursor.

limit integer optional Max results.

miro_shape_create Creates a shape item on a Miro board. Shapes can contain text and support rich styling. 14 params ▾

Creates a shape item on a Miro board. Shapes can contain text and support rich styling.

Name Type Required Description

board_id string required Unique identifier of the board.

shape string required Shape type. Valid values: rectangle, round_rectangle, circle, triangle, rhombus, parallelogram, trapezoid, pentagon, hexagon, octagon, star, cross, right_arrow, left_right_arrow, cloud.

content string optional Text content inside the shape (supports simple HTML).

fill_color string optional Background fill color as hex code (e.g. #ff0000) or name.

font_size string optional Font size for text inside the shape as a string number.

height number optional Height of the shape in board units.

parent_id string optional ID of a parent frame to place the shape inside.

position_x number optional X coordinate on the board (0 = center).

position_y number optional Y coordinate on the board (0 = center).

rotation number optional Rotation angle in degrees.

stroke_color string optional Border/stroke color as hex code.

stroke_width string optional Border stroke width as a string number.

text_align string optional Horizontal text alignment. Valid values: left, center, right.

width number optional Width of the shape in board units.

miro_shape_delete Deletes a shape item from a Miro board. 2 params ▾

Deletes a shape item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the shape to delete.

miro_shape_get Retrieves details of a specific shape item on a Miro board. 2 params ▾

Retrieves details of a specific shape item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the shape item.

miro_shape_update Updates the content, style, or position of a shape item on a Miro board. 11 params ▾

Updates the content, style, or position of a shape item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the shape to update.

content string optional Updated text content inside the shape.

fill_color string optional Updated fill color as hex code.

height number optional Updated height in board units.

parent_id string optional ID of a parent frame to move the shape into.

position_x number optional Updated X coordinate on the board.

position_y number optional Updated Y coordinate on the board.

shape string optional Updated shape type (e.g. rectangle, circle, triangle).

stroke_color string optional Updated stroke/border color as hex code.

width number optional Updated width in board units.

miro_sticky_note_create Creates a sticky note item on a Miro board. 10 params ▾

Creates a sticky note item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

content string optional Text content of the sticky note (supports simple HTML tags).

fill_color string optional Background color. Valid values: gray, light_yellow, yellow, orange, light_green, green, dark_green, cyan, light_pink, pink, violet, red, light_blue, blue, dark_blue, black, white.

parent_id string optional ID of a parent frame to place the sticky note inside.

position_x number optional X coordinate on the board (0 = center).

position_y number optional Y coordinate on the board (0 = center).

shape string optional Shape of the sticky note. Valid values: square, rectangle.

text_align string optional Horizontal text alignment. Valid values: left, center, right.

text_align_vertical string optional Vertical text alignment. Valid values: top, middle, bottom.

width number optional Width of the sticky note in board units.

miro_sticky_note_delete Deletes a sticky note from a Miro board. 2 params ▾

Deletes a sticky note from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the sticky note to delete.

miro_sticky_note_get Retrieves details of a specific sticky note on a Miro board. 2 params ▾

Retrieves details of a specific sticky note on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the sticky note item.

miro_sticky_note_update Updates the content, style, or position of a sticky note on a Miro board. 10 params ▾

Updates the content, style, or position of a sticky note on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the sticky note to update.

content string optional Updated text content of the sticky note.

fill_color string optional Updated background color (e.g. yellow, blue, pink).

parent_id string optional ID of a parent frame to move the sticky note into.

position_x number optional Updated X coordinate on the board.

position_y number optional Updated Y coordinate on the board.

shape string optional Updated shape. Valid values: square, rectangle.

text_align string optional Updated horizontal text alignment: left, center, right.

width number optional Updated width of the sticky note.

miro_tag_create Creates a tag on a Miro board. Tags can be attached to items to categorize them. 3 params ▾

Creates a tag on a Miro board. Tags can be attached to items to categorize them.

Name Type Required Description

board_id string required Unique identifier of the board.

title string required Tag text (max 120 characters, must be unique on the board).

fill_color string optional Tag color. Valid values: red, light_green, cyan, yellow, magenta, green, blue, gray, violet, dark_green, dark_blue, black.

miro_tag_delete Deletes a tag from a Miro board. Detaches the tag from all items it was attached to. 2 params ▾

Deletes a tag from a Miro board. Detaches the tag from all items it was attached to.

Name Type Required Description

board_id string required Unique identifier of the board.

tag_id string required Unique identifier of the tag to delete.

miro_tag_get Retrieves details of a specific tag on a Miro board. 2 params ▾

Retrieves details of a specific tag on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

tag_id string required Unique identifier of the tag.

miro_tag_update Updates the title or color of a tag on a Miro board. 4 params ▾

Updates the title or color of a tag on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

tag_id string required Unique identifier of the tag to update.

fill_color string optional Updated tag color (e.g. red, blue, green, yellow).

title string optional Updated tag text (max 120 characters, must be unique on the board).

miro_tags_list Returns all tags on a Miro board. 1 param ▾

Returns all tags on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

miro_team_create Creates a new team in an organization (Enterprise only). 3 params ▾

Creates a new team in an organization (Enterprise only).

Name Type Required Description

name string required Team name.

org_id string required Organization ID.

description string optional Team description.

miro_team_delete Deletes a team from an organization (Enterprise only). 2 params ▾

Deletes a team from an organization (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

team_id string required Team ID.

miro_team_get Retrieves a specific team in an organization (Enterprise only). 2 params ▾

Retrieves a specific team in an organization (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

team_id string required Team ID.

miro_team_member_delete Removes a member from a team (Enterprise only). 3 params ▾

Removes a member from a team (Enterprise only).

Name Type Required Description

member_id string required Member ID.

org_id string required Organization ID.

team_id string required Team ID.

miro_team_member_get Retrieves a specific member of a team (Enterprise only). 3 params ▾

Retrieves a specific member of a team (Enterprise only).

Name Type Required Description

member_id string required Member ID.

org_id string required Organization ID.

team_id string required Team ID.

miro_team_member_invite Invites a user to a team by email (Enterprise only). 4 params ▾

Invites a user to a team by email (Enterprise only).

Name Type Required Description

email string required User email.

org_id string required Organization ID.

team_id string required Team ID.

role string optional Role: admin | member | guest.

miro_team_member_update Updates the role of a team member (Enterprise only). 4 params ▾

Updates the role of a team member (Enterprise only).

Name Type Required Description

member_id string required Member ID.

org_id string required Organization ID.

role string required New role: admin | member | guest.

team_id string required Team ID.

miro_team_members_list Lists members of a team (Enterprise only). 4 params ▾

Lists members of a team (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

team_id string required Team ID.

cursor string optional Pagination cursor.

limit integer optional Max results.

miro_team_settings_get Retrieves settings for a team (Enterprise only). 2 params ▾

Retrieves settings for a team (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

team_id string required Team ID.

miro_team_settings_update Updates settings for a team (Enterprise only). 4 params ▾

Updates settings for a team (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

team_id string required Team ID.

copy_access_level string optional Who can copy boards: team_only | company | anyone.

sharing_policy string optional Board sharing policy: team_only | company | public.

miro_team_update Updates a team's name or description (Enterprise only). 4 params ▾

Updates a team's name or description (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

team_id string required Team ID.

description string optional New description.

name string optional New team name.

miro_teams_list Lists all teams in an organization (Enterprise only). 3 params ▾

Lists all teams in an organization (Enterprise only).

Name Type Required Description

org_id string required Organization ID.

cursor string optional Pagination cursor.

limit integer optional Max results per page.

miro_text_create Creates a text item on a Miro board. 11 params ▾

Creates a text item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

content string required Text content (supports HTML tags).

color string optional Text color as hex code.

fill_color string optional Background color as hex code.

font_size string optional Font size as a string number (e.g. '14').

parent_id string optional ID of a parent frame to place the text inside.

position_x number optional X coordinate on the board (0 = center).

position_y number optional Y coordinate on the board (0 = center).

rotation number optional Rotation angle in degrees.

text_align string optional Text alignment. Valid values: left, center, right.

width number optional Width of the text box in board units.

miro_text_delete Deletes a text item from a Miro board. 2 params ▾

Deletes a text item from a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the text item to delete.

miro_text_get Retrieves details of a specific text item on a Miro board. 2 params ▾

Retrieves details of a specific text item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the text item.

miro_text_update Updates the content, style, or position of a text item on a Miro board. 8 params ▾

Updates the content, style, or position of a text item on a Miro board.

Name Type Required Description

board_id string required Unique identifier of the board.

item_id string required Unique identifier of the text item to update.

color string optional Updated text color as hex code.

content string optional Updated text content.

font_size string optional Updated font size as a string number.

position_x number optional Updated X coordinate on the board.

position_y number optional Updated Y coordinate on the board.

width number optional Updated width in board units.

miro_token_info_get Returns information about the current OAuth token including the authenticated user ID, name, team, and granted scopes. 0 params ▾

Returns information about the current OAuth token including the authenticated user ID, name, team, and granted scopes.
