New to MCP?

AI systems are moving beyond chatbots to agents that act in the real world. They handle sensitive data and run complex workflows. As they grow, they need a secure, standard way to connect. The Model Context Protocol (MCP) provides that standard. It defines how AI applications safely discover and use external tools and data.

MCP incorporates OAuth 2.1 authorization mechanisms at the transport level. This enables MCP clients to make secure requests to restricted MCP servers on behalf of resource owners.

Features	Benefit
Industry standard	Well-established authorization framework with extensive tooling and ecosystem support
Security best practices	Incorporates improvements over OAuth 2.0, removing deprecated flows and enforcing security measures like PKCE
Multiple grant types	Supports different use cases: Authorization code for human user scenarios and Client credentials for machine-to-machine integrations
Ecosystem compatibility	Integrates with existing identity providers and authorization servers

MCP authorization specification overview

This authorization mechanism is based on established specifications listed below, but implements a selected subset of their features to ensure security and interoperability while maintaining simplicity:

• OAuth 2.1
• OAuth 2.0 Authorization Server Metadata (RFC8414)
• OAuth 2.0 Dynamic Client Registration Protocol (RFC7591)
• OAuth 2.0 Protected Resource Metadata (RFC9728)

Quick reference: High-level flow

This simplified diagram shows the key actors and main interactions. Use this for quick reference while scrolling through the detailed flow below.

Complete MCP OAuth 2.1 flow

Here’s the complete end-to-end authorization flow showing all phases from discovery to token refresh in a single sequence diagram:

Understanding the MCP authorization flow

Discovery phase

1. MCP client attempts to access a protected resource without credentials
2. MCP server responds with 401 Unauthorized and includes authorization metadata in the WWW-Authenticate header
3. Client retrieves resource metadata to identify authorization servers
4. Client discovers authorization server capabilities through the metadata endpoint

Dynamic client registration

5. Client submits registration request with metadata (redirect URIs, application info)
6. Authorization server validates the request and issues client credentials
7. Client stores credentials securely for subsequent authorization requests

Authorization code flow

8. Client generates PKCE code verifier and challenge
9. Client redirects user to authorization server with PKCE challenge
10. User authenticates and grants consent for requested scopes
11. Authorization server redirects back with authorization code
12. Client exchanges code and PKCE verifier for access token
13. Authorization server validates PKCE and issues tokens with granted scopes

Access phase

14. Client includes access token in the Authorization header
15. MCP server validates the token signature and expiration
16. Server checks if token scopes match the required permissions
17. If token is valid and scope is sufficient: Server processes the request and returns 200 OK with the requested data
18. If token is invalid or scope is insufficient: Server returns 401 Unauthorized or 403 Forbidden error

Token refresh (when needed)

19. Client detects token expiration (through 401 response or token expiry time)
20. Client sends refresh token request to authorization server
21. Authorization server validates refresh token and issues new access tokens
22. Client updates stored tokens and retries the original request

MCP OAuth 2.1 provides secure, standardized authorization for AI agents accessing protected resources. The flow establishes trust, authenticates users, authorizes access, and maintains security throughout the session lifecycle by building each phase on the previous one.

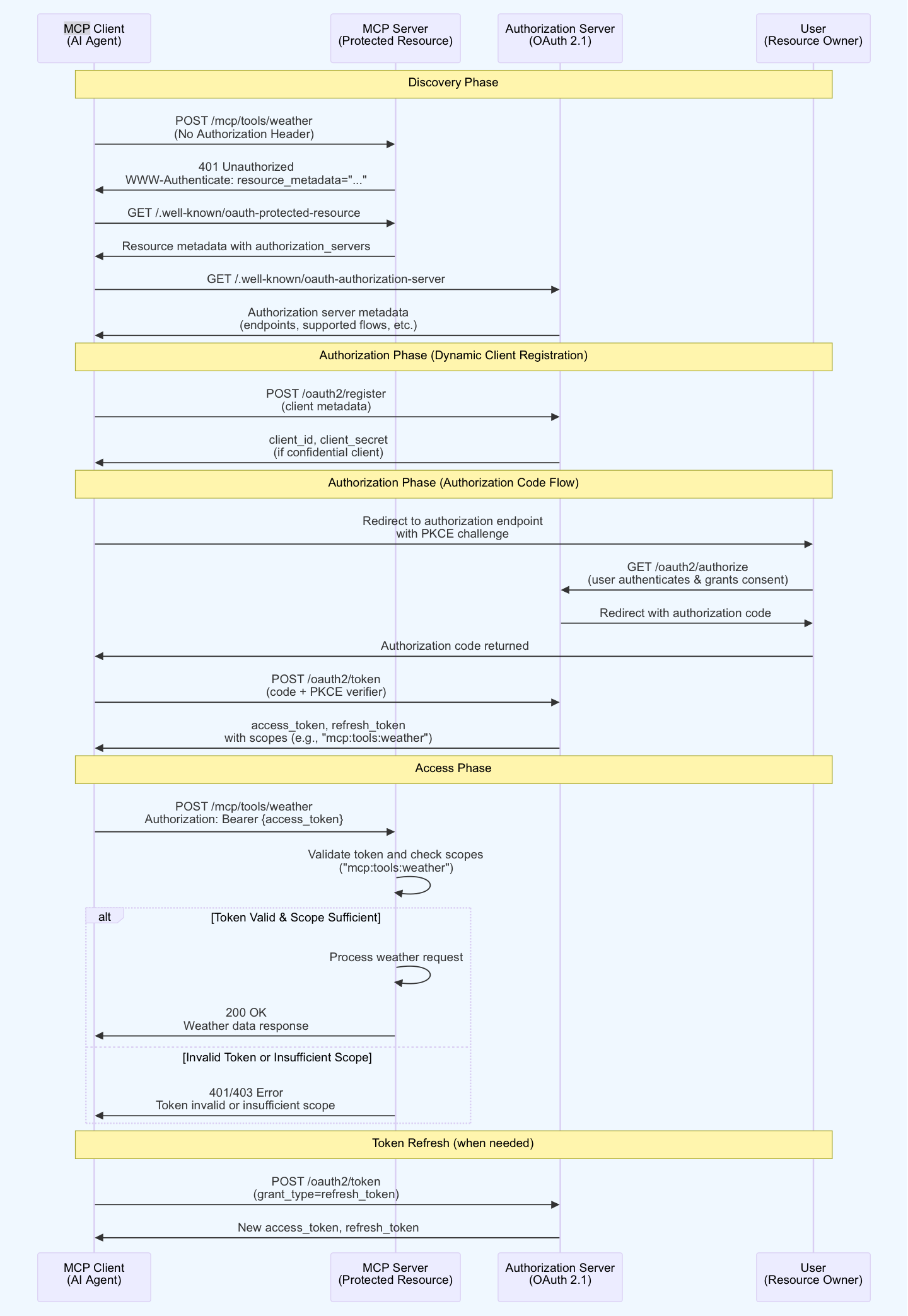

Original diagram reference

For reference, here’s the complete flow diagram showing all phases and interactions in a traditional sequence diagram format:
