Agent / Machine interacting with MCP Server

Overview

An autonomous agent or any machine-to-machine process can directly interact with an MCP Server secured by Scalekit. In this model, the agent acts as a confidential OAuth client, authenticated using a client_id and client_secret issued by Scalekit.

This topology uses the OAuth 2.1 Client Credentials flow, allowing the agent to obtain an access token without user interaction. Tokens are scoped and time-bound, ensuring secure and auditable automation between services.

Flow Summary

The agent authenticates with Scalekit using the OAuth 2.1 Client Credentials Flow to obtain a scoped access token, then calls the MCP Server’s tools using that token for secure, automated communication.

---

Authorization Sequence

---

How It Works

Client Registration
Before an agent can request tokens, you must create a Machine-to-Machine (M2M) client for your MCP Server in Scalekit.

Steps to create a client:

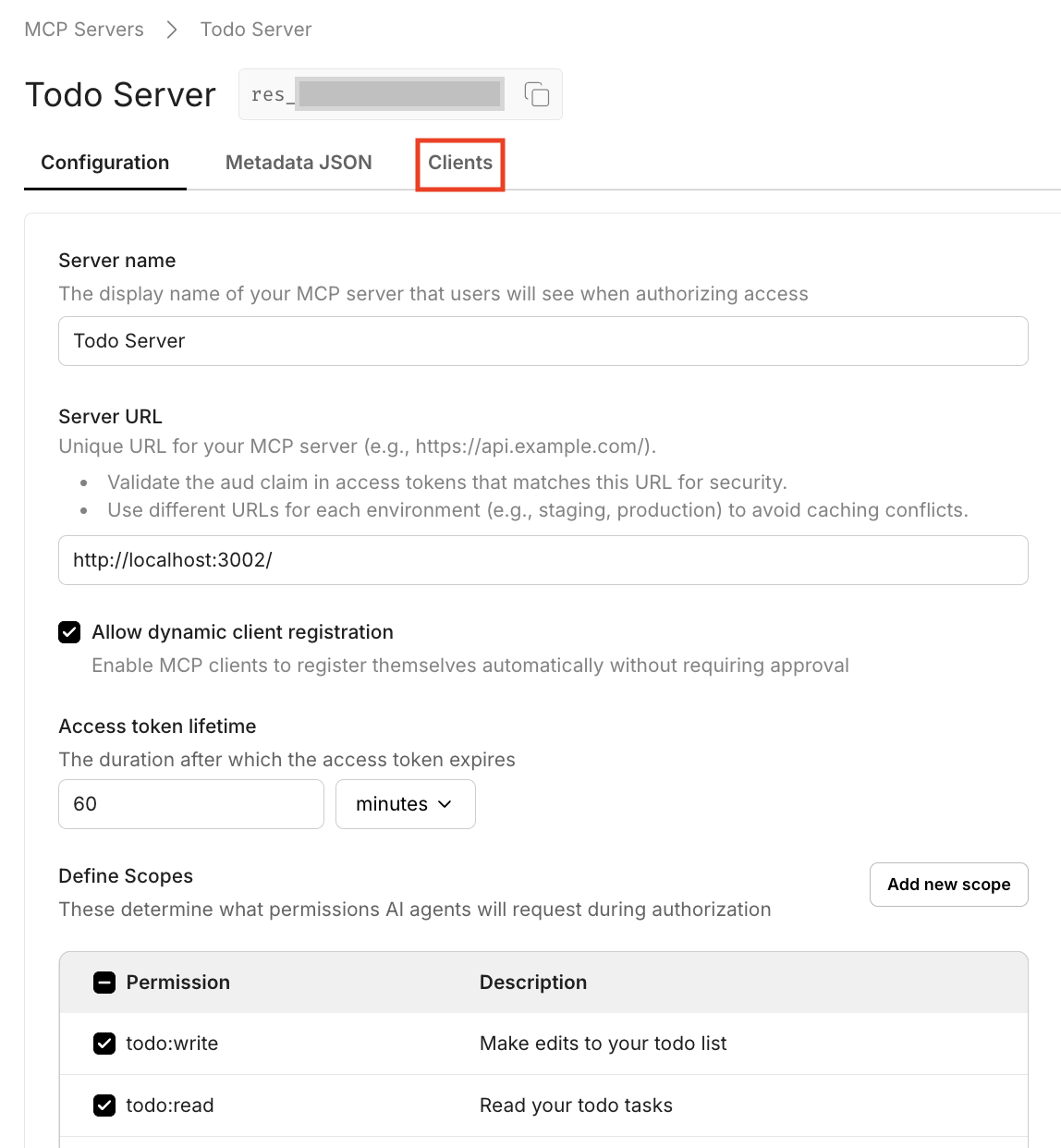

1. Navigate to Dashboard → MCP Servers and select your MCP Server. Go to the Clients tab.

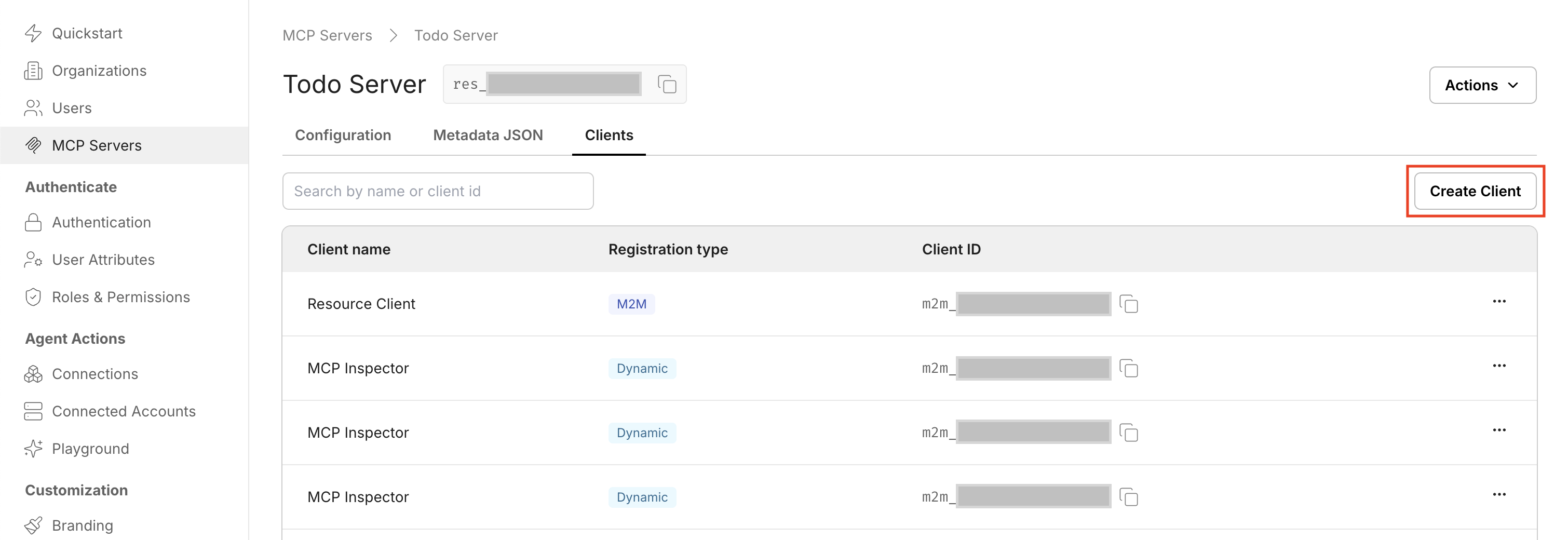

2. Click Create Client.

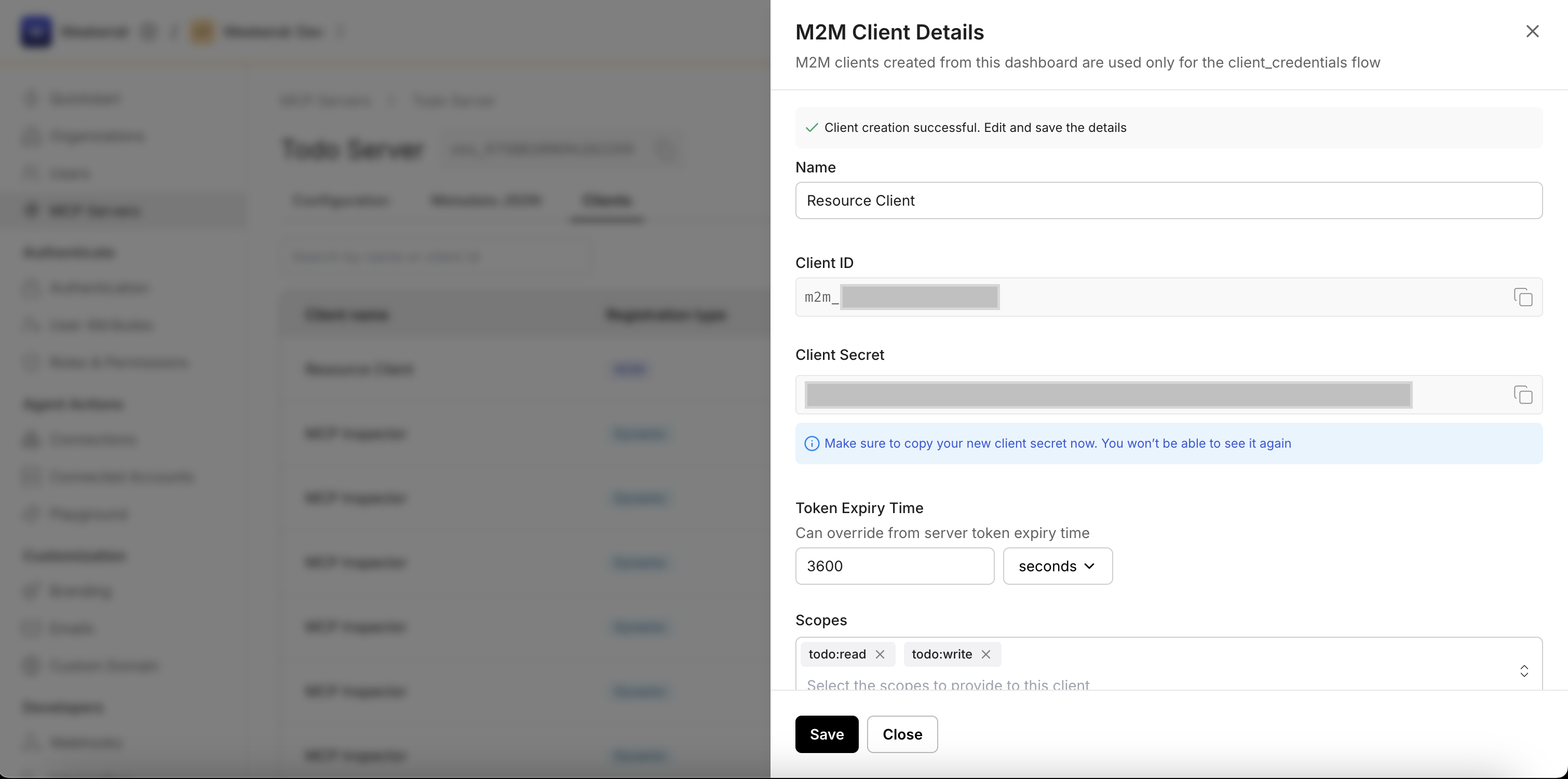

3. Copy the client_id and client_secret immediately - the secret will not be shown again.

4. Optionally, set scopes (e.g., todo:read, todo:write) that correspond to the permissions configured for your MCP Server. Hit Save

---

Requesting an Access Token

Once you have the client credentials, the agent can request a token directly from the Scalekit Authorization Server:

Terminal

curl --location '{{env_url}}/oauth/token' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'grant_type=client_credentials' \
--data-urlencode 'client_id={{client_id}}' \
--data-urlencode 'client_secret={{secret_value}}' \
--data-urlencode 'scope=todo:read todo:write'

Scalekit responds with a JSON payload similar to:

{
  "access_token": "eyJhbGciOiJSUzI1NiIsInR5cCIgOiAiSldUIn0...",
  "token_type": "Bearer",
  "expires_in": 3600,
  "scope": "todo:read todo:write"
}

Use the access_token in the Authorization header when calling your MCP Server’s endpoint.

Tip

Scalekit issues short-lived tokens that can be safely reused until they expire. Cache the token locally and request a new one shortly before expiration to maintain efficient, secure machine-to-machine communication.

---

Try It Yourself

If you’d like to simulate this flow, use the same FastMCP Todo Server from the FastMCP Example.
Create an M2M client in the Scalekit Dashboard and run your token request using curl or programmatically within your agent. Once the token is obtained, attach it as a Bearer token in the Authorization header when calling your MCP Server’s tools.
