Figma

Connect to Figma API v1. Read and write files, manage components, styles, variables, webhooks, and dev resources. Enterprise features include library analytics and activity logs.

Supports authentication: OAuth 2.0

Set up the agent connector

Register your Figma app credentials with Scalekit so it can manage the OAuth 2.0 authentication flow and token lifecycle on your behalf. You’ll need a Client ID and Client Secret from the Figma Developers portal.

1. Create a Figma connection in Scalekit

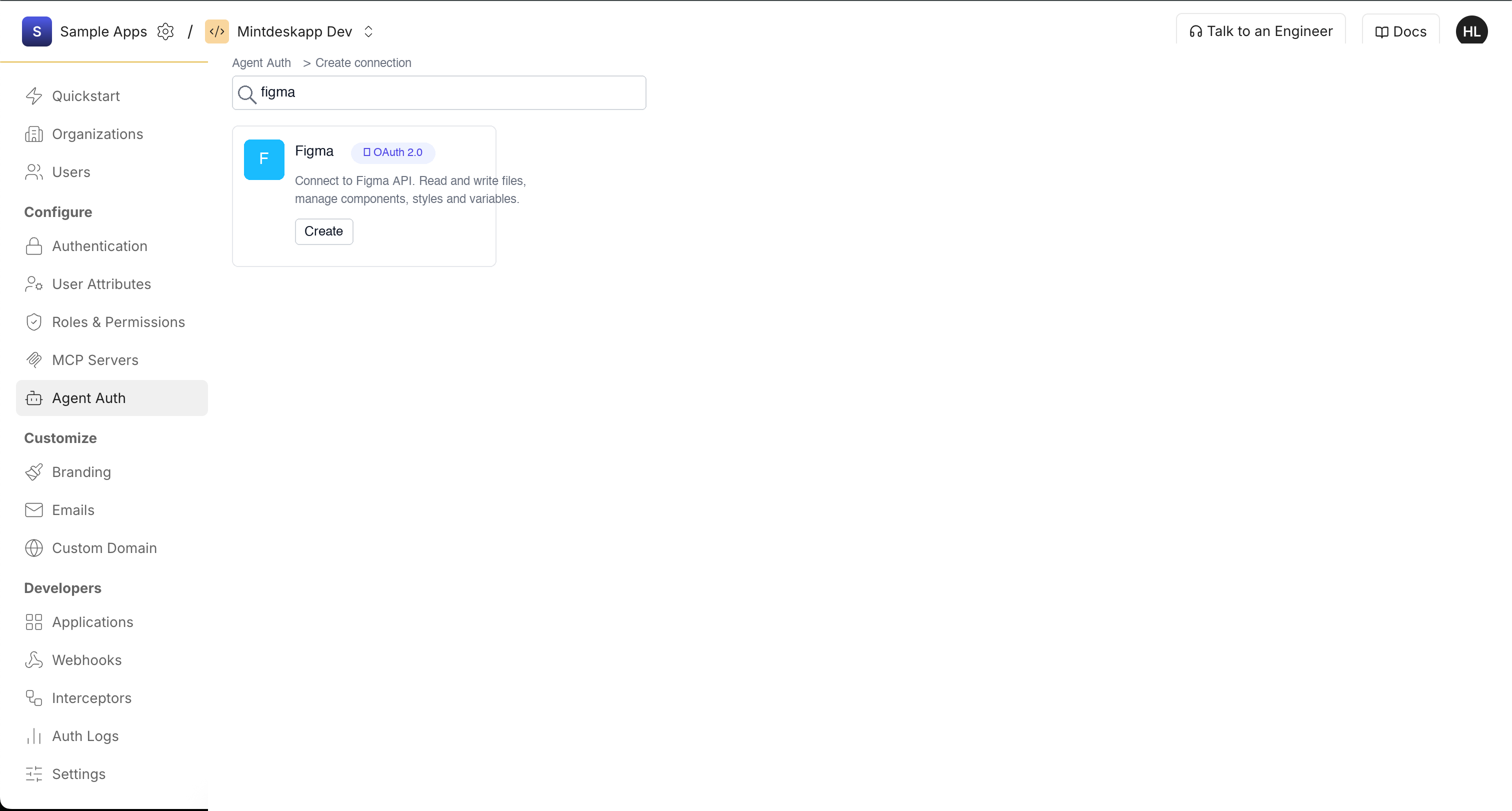

   • In Scalekit dashboard, go to Agent Auth → Create Connection. Search for Figma and click Create.

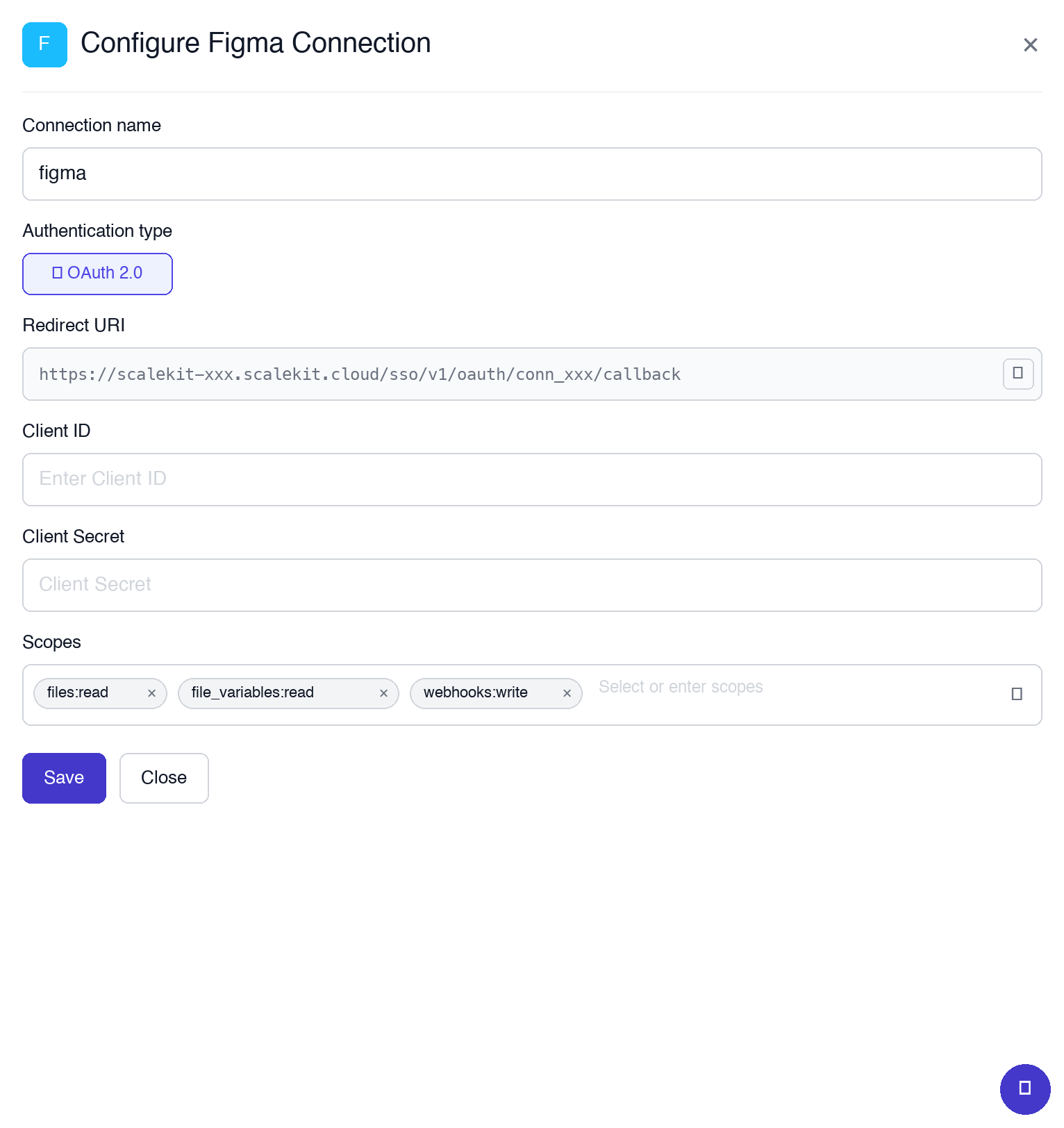

   • In the Configure Figma Connection panel, copy the Redirect URI. It looks like https://<SCALEKIT_ENVIRONMENT_URL>/sso/v1/oauth/<CONNECTION_ID>/callback. You’ll paste this into Figma in the next step.



2. Create an app in the Figma Developers portal

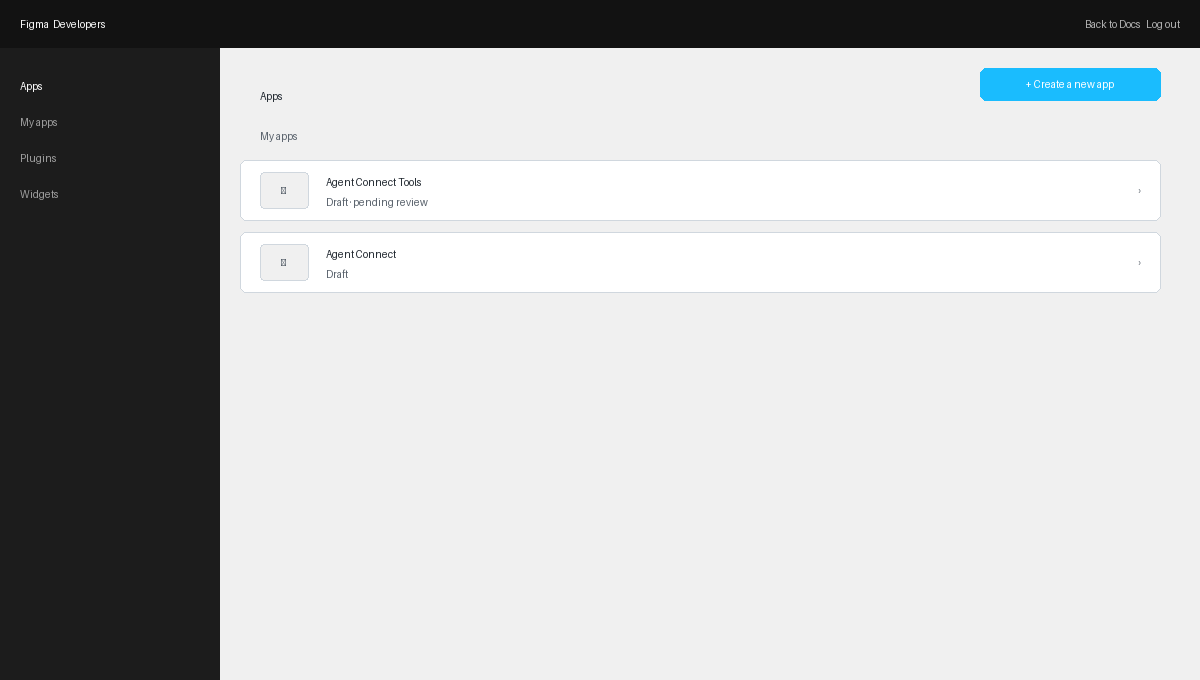

   • Go to the Figma Developers portal and sign in. Click + Create a new app.



   • Fill in your app name and description, then click Save.

3. Add the redirect URI and copy credentials

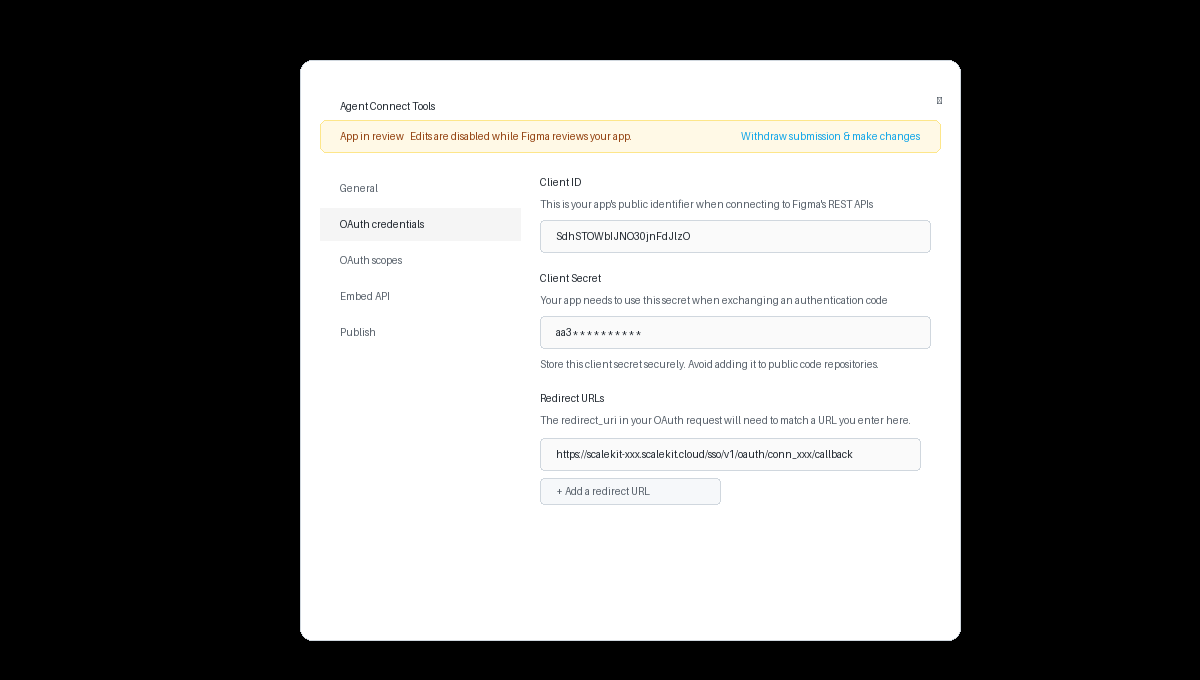

   • Open your app and click the OAuth credentials tab.

   • Under Redirect URLs, click Add a redirect URL and paste the Redirect URI you copied from Scalekit.

   • Copy the Client ID from the same tab.

   • Copy the Client Secret. Store it securely — never commit it to source control.



   Client secret is shown once

   The Client Secret is masked after the initial creation. If you lose it, you must generate a new one in the Figma app settings.

4. Add credentials in Scalekit

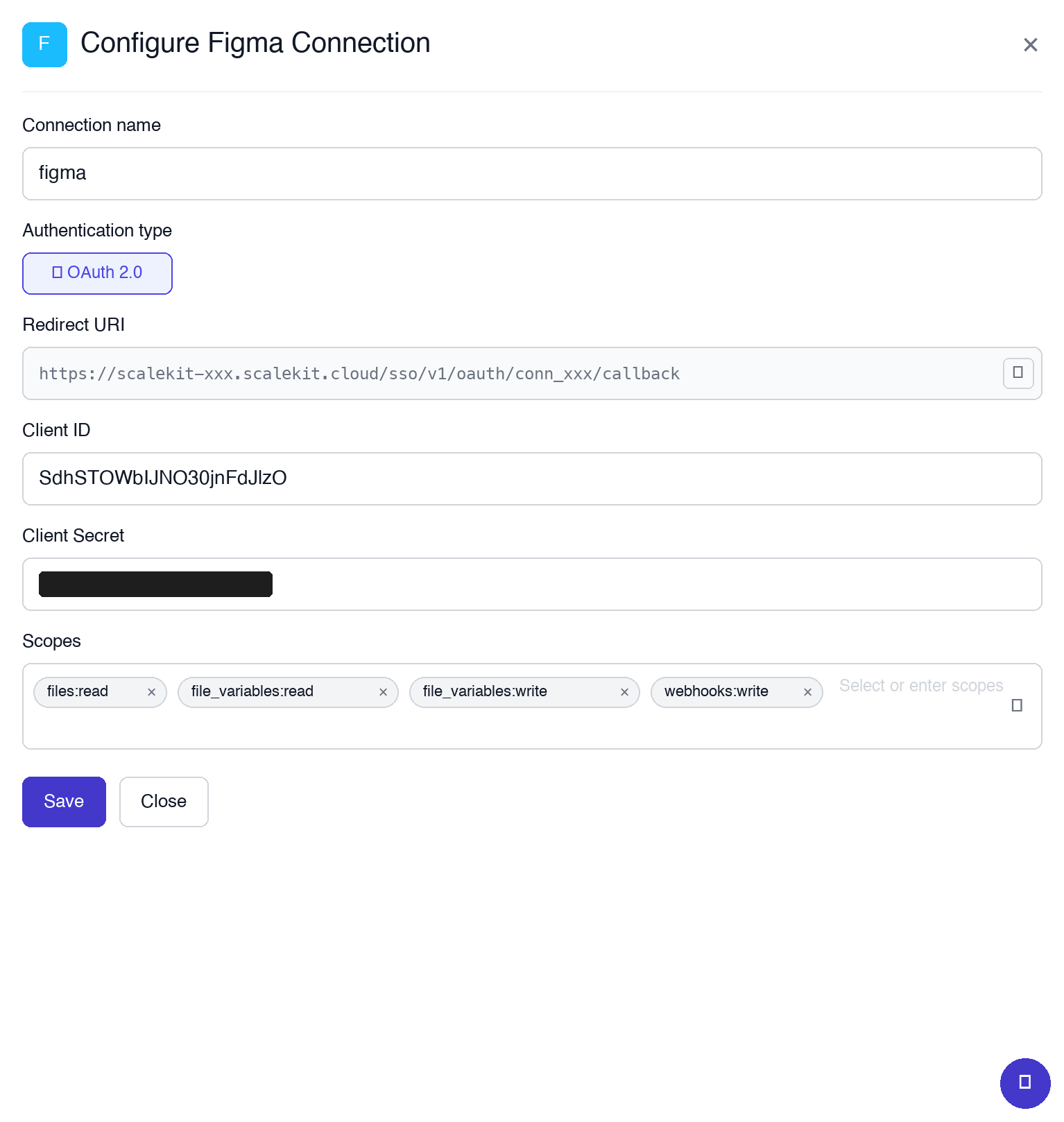

   • In Scalekit dashboard, go to Agent Auth → Connections and open the Figma connection you created.

   • Enter your credentials:

     • Client ID — from the Figma OAuth credentials tab
     • Client Secret — copied in the previous step
     • Scopes — select the permissions your app needs:
       • files:read — read files, nodes, images, components, and styles
       • file_variables:read — read local and published variables
       • file_variables:write — create, update, and delete variables
       • webhooks:write — create, update, and delete team webhooks



   • Click Save.

Usage

Connect a user’s Figma account and make API calls on their behalf — Scalekit handles OAuth and token management automatically.

You can interact with Figma in two ways — via direct proxy API calls or via Scalekit optimized tool calls. Scroll down to see the list of available Scalekit tools.

Proxy API calls

Node.js

import { ScalekitClient } from '@scalekit-sdk/node';
import 'dotenv/config';

const connectionName = 'figma'; // get your connection name from connection configurations
const identifier = 'user_123';  // your unique user identifier

// Get your credentials from app.scalekit.com → Developers → Settings → API Credentials
const scalekit = new ScalekitClient(
  process.env.SCALEKIT_ENV_URL,
  process.env.SCALEKIT_CLIENT_ID,
  process.env.SCALEKIT_CLIENT_SECRET
);
const actions = scalekit.actions;

// Step 1: Generate an authorization link and present it to your user
const { link } = await actions.getAuthorizationLink({
  connectionName,
  identifier,
});
console.log('Authorize Figma:', link);
process.stdout.write('Press Enter after authorizing...');
await new Promise(r => process.stdin.once('data', r));

// Step 2: Make API requests via the Scalekit proxy — no token management needed
const me = await actions.request({
  connectionName,
  identifier,
  path: '/v1/me',
  method: 'GET',
});
console.log('Authenticated user:', me);

// Example: fetch a file's document tree
const file = await actions.request({
  connectionName,
  identifier,
  path: '/v1/files/YOUR_FILE_KEY',
  method: 'GET',
});
console.log('File:', file);

Python

import scalekit.client, os
from dotenv import load_dotenv
load_dotenv()

connection_name = "figma"  # get your connection name from connection configurations
identifier = "user_123"   # your unique user identifier

# Get your credentials from app.scalekit.com → Developers → Settings → API Credentials
scalekit_client = scalekit.client.ScalekitClient(
    client_id=os.getenv("SCALEKIT_CLIENT_ID"),
    client_secret=os.getenv("SCALEKIT_CLIENT_SECRET"),
    env_url=os.getenv("SCALEKIT_ENV_URL"),
)
actions = scalekit_client.actions

# Step 1: Generate an authorization link and present it to your user
link_response = actions.get_authorization_link(
    connection_name=connection_name,
    identifier=identifier
)
print("Authorize Figma:", link_response.link)
input("Press Enter after authorizing...")

# Step 2: Make API requests via the Scalekit proxy — no token management needed
me = actions.request(
    connection_name=connection_name,
    identifier=identifier,
    path="/v1/me",
    method="GET"
)
print("Authenticated user:", me)

# Example: fetch a file's document tree
file = actions.request(
    connection_name=connection_name,
    identifier=identifier,
    path="/v1/files/YOUR_FILE_KEY",
    method="GET"
)
print("File:", file)

Scalekit tools

figma_me_get

Returns the authenticated user’s profile information including name, email, handle, and profile image URL. No parameters required.

figma_file_get

Returns a Figma file’s full document tree including all nodes, components, styles, and metadata.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the Figma file (found in the file URL)
version	string	No	A specific version ID to retrieve; omit for the latest version
ids	string	No	Comma-separated list of node IDs to limit the response to specific nodes
depth	integer	No	Maximum depth of the document tree to return
geometry	string	No	Set to paths to export vector path data for nodes
plugin_data	string	No	Comma-separated list of plugin IDs to include plugin-specific data
branch_data	boolean	No	Whether to include branch metadata in the response

figma_file_nodes_get

Returns specific nodes from a Figma file by their node IDs, along with their children and associated styles and components.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the Figma file
ids	string	Yes	Comma-separated list of node IDs to fetch
version	string	No	A specific version ID to retrieve
depth	integer	No	Maximum depth of the subtree to return
geometry	string	No	Set to paths to export vector path data
plugin_data	string	No	Comma-separated list of plugin IDs for plugin-specific data

figma_file_images_render

Renders nodes from a Figma file as images (PNG, JPG, SVG, or PDF) and returns download URLs.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the Figma file
ids	string	Yes	Comma-separated list of node IDs to render
scale	number	No	Image scale factor between 0.01 and 4 (default: 1)
format	string	No	Output format: png, jpg, svg, or pdf (default: png)
svg_include_id	boolean	No	Whether to include node IDs as attributes in SVG output
svg_simplify_stroke	boolean	No	Whether to simplify inside/outside strokes in SVG output
use_absolute_bounds	boolean	No	Whether to use the node’s absolute bounding box for cropping
version	string	No	A specific version ID to render

figma_file_image_fills_get

Returns download URLs for all image fills used in a Figma file. Image fills are images applied as fills to nodes.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the Figma file

figma_file_versions_list

Returns the version history of a Figma file, including version IDs, labels, descriptions, and creation timestamps.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the Figma file
page_size	integer	No	Number of versions to return per page
before	integer	No	Cursor for backward pagination; returns versions before this version ID
after	integer	No	Cursor for forward pagination; returns versions after this version ID

figma_file_comments_list

Returns all comments on a Figma file, including their text, author, position, and resolved status.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the Figma file
as_md	boolean	No	Whether to return comment text formatted as Markdown

figma_file_comment_create

Posts a new comment on a Figma file. Can be placed at a specific canvas position or anchored to a specific node.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the Figma file
message	string	Yes	The text content of the comment
client_meta	object	No	Coordinates or node anchor for placing the comment on the canvas
comment_id	string	No	ID of the parent comment to reply to an existing thread

figma_file_comment_delete

Deletes a specific comment from a Figma file. Only the comment author or file owner can delete a comment.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the Figma file
comment_id	string	Yes	The ID of the comment to delete

figma_comment_reactions_list

Returns a list of emoji reactions on a specific comment in a Figma file.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the Figma file
comment_id	string	Yes	The ID of the comment to list reactions for
cursor	string	No	Pagination cursor for fetching the next page of results

figma_comment_reaction_create

Adds an emoji reaction to a comment in a Figma file.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the Figma file
comment_id	string	Yes	The ID of the comment to react to
emoji	string	Yes	The emoji to add as a reaction (e.g., :heart:, :+1:)

figma_comment_reaction_delete

Removes the authenticated user’s emoji reaction from a comment in a Figma file.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the Figma file
comment_id	string	Yes	The ID of the comment to remove the reaction from
emoji	string	Yes	The emoji reaction to remove (e.g., :heart:, :+1:)

figma_file_components_list

Returns a list of all published components in a Figma file, including their keys, names, descriptions, and thumbnails.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the Figma file

figma_component_get

Returns metadata for a published component by its key, including name, description, thumbnail, and containing file information.

Name	Type	Required	Description
key	string	Yes	The key of the published component (from figma_file_components_list)

figma_file_component_sets_list

Returns all published component sets in a Figma file.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the Figma file

figma_component_set_get

Returns metadata for a published component set (a group of related component variants) by its key.

Name	Type	Required	Description
key	string	Yes	The key of the published component set

figma_team_components_list

Returns all published components in a Figma team library, with pagination support.

Name	Type	Required	Description
team_id	string	Yes	The ID of the Figma team
page_size	integer	No	Number of components to return per page
after	integer	No	Cursor for forward pagination
before	integer	No	Cursor for backward pagination

figma_team_component_sets_list

Returns all published component sets in a Figma team library, with pagination support.

Name	Type	Required	Description
team_id	string	Yes	The ID of the Figma team
page_size	integer	No	Number of component sets to return per page
after	integer	No	Cursor for forward pagination
before	integer	No	Cursor for backward pagination

figma_file_styles_list

Returns all published styles in a Figma file, including color, text, effect, and grid styles.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the Figma file

figma_style_get

Returns metadata for a published style by its key, including name, description, style type, and containing file information.

Name	Type	Required	Description
key	string	Yes	The key of the published style

figma_team_styles_list

Returns all published styles in a Figma team library, with pagination support.

Name	Type	Required	Description
team_id	string	Yes	The ID of the Figma team
page_size	integer	No	Number of styles to return per page
after	integer	No	Cursor for forward pagination
before	integer	No	Cursor for backward pagination

figma_file_variables_local_get

Returns all local variables and variable collections defined in a Figma file. Requires the file_variables:read scope.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the Figma file

figma_file_variables_published_get

Returns all published variables and variable collections from a Figma file’s library. Requires the file_variables:read scope.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the Figma file

figma_file_variables_update

Creates, updates, or deletes variables and variable collections in a Figma file. Accepts a JSON payload describing the changes. Requires the file_variables:write scope.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the Figma file
variableCollections	array	No	Variable collection changes: create, update, or delete collections
variableModes	array	No	Variable mode changes: create, update, or delete modes within collections
variables	array	No	Variable changes: create, update, or delete individual variables

figma_team_get

Returns metadata about a Figma team, including its name and member count.

Name	Type	Required	Description
team_id	string	Yes	The ID of the Figma team

figma_team_projects_list

Returns all projects within a Figma team that the authenticated user has access to.

Name	Type	Required	Description
team_id	string	Yes	The ID of the Figma team

figma_project_files_list

Returns all files in a Figma project, including file keys, names, thumbnails, and last modified timestamps.

Name	Type	Required	Description
project_id	string	Yes	The ID of the Figma project
branch_data	boolean	No	Whether to include branch metadata for each file

figma_dev_resources_list

Returns dev resources (links to external tools like Storybook, Jira, etc.) attached to nodes in a Figma file.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the Figma file
node_id	string	No	Filter results to dev resources attached to a specific node ID

figma_dev_resource_create

Creates a dev resource (external link) attached to a node in a Figma file, such as a link to Storybook, Jira, or documentation.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the Figma file
node_id	string	Yes	The ID of the node to attach the dev resource to
name	string	Yes	Display name for the dev resource link
url	string	Yes	The URL of the external resource

figma_dev_resource_update

Updates an existing dev resource attached to a node in a Figma file.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the Figma file
dev_resource_id	string	Yes	The ID of the dev resource to update
name	string	No	Updated display name for the dev resource
url	string	No	Updated URL for the dev resource

figma_dev_resource_delete

Permanently deletes a dev resource from a node in a Figma file.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the Figma file
dev_resource_id	string	Yes	The ID of the dev resource to delete

figma_webhook_create

Creates a new webhook that sends events to the specified endpoint URL when Figma events occur in a team. Requires the webhooks:write scope.

Name	Type	Required	Description
team_id	string	Yes	The ID of the Figma team to register the webhook for
event_type	string	Yes	The event type that triggers the webhook (e.g., FILE_UPDATE, FILE_VERSION_UPDATE, FILE_DELETE, LIBRARY_PUBLISH, FILE_COMMENT)
endpoint	string	Yes	The HTTPS URL that receives webhook POST requests
passcode	string	Yes	A secret string included in each webhook payload for request verification
status	string	No	Webhook status: ACTIVE or PAUSED (default: ACTIVE)
description	string	No	A human-readable description of the webhook’s purpose

figma_webhook_get

Returns details of a specific Figma webhook by its ID, including event type, endpoint, and status.

Name	Type	Required	Description
webhook_id	string	Yes	The ID of the webhook to retrieve

figma_webhook_update

Updates an existing Figma webhook’s endpoint, passcode, status, or description.

Name	Type	Required	Description
webhook_id	string	Yes	The ID of the webhook to update
endpoint	string	No	Updated HTTPS URL to receive webhook events
passcode	string	No	Updated secret for verifying webhook payloads
status	string	No	Updated status: ACTIVE or PAUSED
description	string	No	Updated description for the webhook

figma_webhook_delete

Permanently deletes a Figma webhook. This stops all future event deliveries for this webhook.

Name	Type	Required	Description
webhook_id	string	Yes	The ID of the webhook to delete

figma_team_webhooks_list

Returns all webhooks registered for a Figma team.

Name	Type	Required	Description
team_id	string	Yes	The ID of the Figma team

figma_webhook_requests_list

Returns the delivery history for a webhook, including request payloads, response codes, and timestamps.

Name	Type	Required	Description
webhook_id	string	Yes	The ID of the webhook to fetch request history for

figma_payments_get

Returns payment and plan information for a Figma user or resource, including subscription status and plan type.

Name	Type	Required	Description
user_id	string	No	The ID of the user to check payment status for
community_file_id	string	No	The ID of a community file to check resource payment status
plugin_id	string	No	The ID of a plugin to check payment status for

figma_activity_logs_list

Returns activity log events for an organization. Includes events for file edits, permissions changes, and user actions.

Enterprise only

Activity logs are available on Figma Enterprise plans only. The authenticated user must have organization admin permissions.

Name	Type	Required	Description
org_id	string	Yes	The ID of the Figma organization
events	string	No	Comma-separated list of event types to filter by
start_time	integer	No	Unix timestamp (seconds) for the start of the time range
end_time	integer	No	Unix timestamp (seconds) for the end of the time range
limit	integer	No	Number of events to return per page
next_page	string	No	Pagination cursor returned by the previous response

figma_library_analytics_component_actions_get

Returns analytics data on component insertion, detachment, and usage actions from a library file.

Enterprise only

Library analytics require a Figma Enterprise plan and the library_analytics:read scope.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the library file
group_by	string	Yes	Dimension to group results by: component or team
start_date	string	No	Start date for the analytics range (ISO 8601 format, e.g., 2024-01-01)
end_date	string	No	End date for the analytics range (ISO 8601 format)
order	string	No	Sort order for results: asc or desc
cursor	string	No	Pagination cursor for the next page of results

figma_library_analytics_component_usages_get

Returns a snapshot of how many times each component from a library is used across the organization.

Enterprise only

Library analytics require a Figma Enterprise plan and the library_analytics:read scope.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the library file
group_by	string	Yes	Dimension to group results by: component or team
cursor	string	No	Pagination cursor for the next page of results

figma_library_analytics_style_actions_get

Returns analytics data on style insertion and detachment actions from a library file.

Enterprise only

Library analytics require a Figma Enterprise plan and the library_analytics:read scope.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the library file
group_by	string	Yes	Dimension to group results by: style or team
start_date	string	No	Start date for the analytics range (ISO 8601 format)
end_date	string	No	End date for the analytics range (ISO 8601 format)
order	string	No	Sort order for results: asc or desc
cursor	string	No	Pagination cursor for the next page of results

figma_library_analytics_style_usages_get

Returns a snapshot of how many times each style from a library is used across the organization.

Enterprise only

Library analytics require a Figma Enterprise plan and the library_analytics:read scope.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the library file
group_by	string	Yes	Dimension to group results by: style or team
cursor	string	No	Pagination cursor for the next page of results

figma_library_analytics_variable_actions_get

Returns analytics data on variable actions from a library file.

Enterprise only

Library analytics require a Figma Enterprise plan and the library_analytics:read scope.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the library file
group_by	string	Yes	Dimension to group results by: variable or team
start_date	string	No	Start date for the analytics range (ISO 8601 format)
end_date	string	No	End date for the analytics range (ISO 8601 format)
order	string	No	Sort order for results: asc or desc
cursor	string	No	Pagination cursor for the next page of results

figma_library_analytics_variable_usages_get

Returns a snapshot of how many times each variable from a library is used across the organization.

Enterprise only

Library analytics require a Figma Enterprise plan and the library_analytics:read scope.

Name	Type	Required	Description
file_key	string	Yes	The unique key identifying the library file
group_by	string	Yes	Dimension to group results by: variable or team
cursor	string	No	Pagination cursor for the next page of results
